IMPA:592141

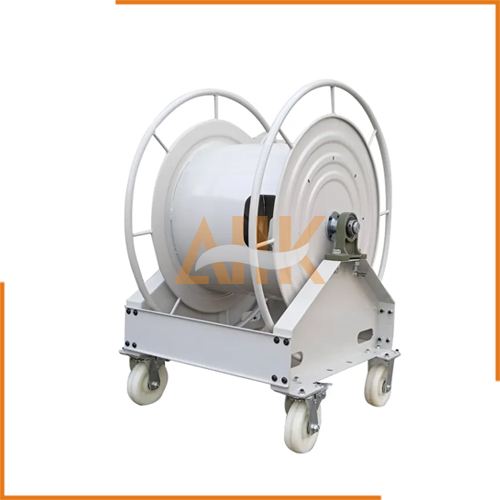

Water powered hose reel capable of stowing up to 35 mtrs of tankcleaning hose. The tankcleaning machine will be connected to the supply hose which is coiled on the drum and a feed hose connects the hoist to the ships’ tankcleaning line.
| CODE | 59 21 41 |
|---|---|
| Model | Hydra Hoist 700 |
| Drive Media | Water Turbine |
| Operating Pressure | 5 – 12 bar (50 – 125 psi) |
| Inlet Connection | 2.5″ x 7.5 tpi (2.5″ ANF) male |
| Capacity | 35 mtr (115 ft) x 38 mm (1.5 ins) rigid wall tankcleaning hose |
| Lifting Speed | 6 mtr/min. (20 ft/min.) at 10 bar (Average) |
| Lowering Speed | 3 mtr/min. (10 ft/min.) at 10 bar (Average) |
| Stowage area of unit | 0.83 m² (9 ft²) |
| Dimensions | L1,220 x W680 x H1,109 mm |
| Weight | 140 kgs (308 lbs) |
