IMPA Code: 795741/795742/795743/795744/795742.001

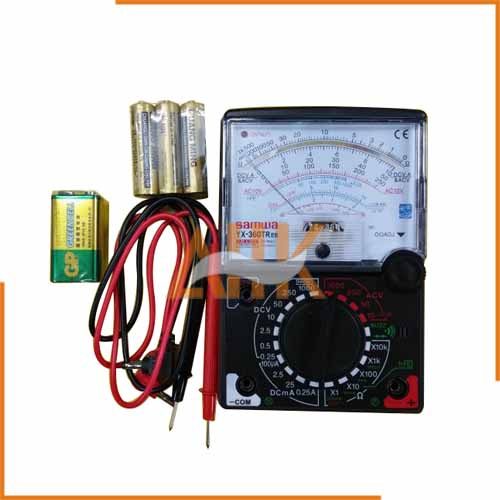

These are matched, portable instruments; highly acuurate for industrial electricity testing. They are designed to meet the requirements of most industrial test situations.
| Type | Drop shock proof | Zero center&continuity LED | Zero center&C check | Universal polarity switching | ||
| Measuring Range | DCV | 300m (5kΩ/V) 3/12/30/120V/600V. (20kΩ/v ±3% f.s. | 100m/500m/2.5/10/50/250/1000V (20kΩ) ±2.5% f.s. 25kV(w/HV probe) | 120m/3/12/30/120/300/1200V(20kΩ/V) ±2.5% f.s. 25kV (w/HV probe). | 120m(4kΩ)/3/12/30/120/300 (50KΩ/V) 120m: ±4% ±2.5% f.s. | |
| ACV | 12/30/120/600V(9kV) ±3% F.S. | 2.5/10V ±4% f.s. 50/250/1000V (9kΩ/V) ±3% f.s. | 3/12/30/120/300/1200V(9kΩ) ±3% f.s. | 3/12/30/120/300/750V (8kΩ/V) ±3% f.s. (Less than 12V range: ±4%) | ||
| DCA | 60μ/30m/300mA ±3% f.s. | 50μ/2.5m/25m/250mA(250mV) ±2.5% f.s. | 50μ/3m/30m/300mA(300mV) ±2.5% f.s. | 30μ/3m/3M/30m/0.3A ±2.5% f.s. | ||
| Ω | 2k/20k/2M ±3 f.s./ 200M ±5 f.s. | 2k/20k/200k/2M/20MΩ MAX ±3% of arc. | 3k/30k/300k/3M/30MΩ MAX ±3% of arc. | 5k/50k/500k/5M/50MΩ ±3% of arc. | ||
| Power Source | R6(1.5V)x2 | R6(1.5V)x2，6F22(9V)x1 | R6(1.5V)x2, 6F22(9V)x1 | R5(1.5V)x2, 6F22(9V)x1 | ||
| Size mm | 159.5x129x41.5 | 150x100x37 | 150x100x36 | 165x106x46 | ||
| Weight grm | 320 | 290 | 300 | 370 | ||
