IMPA: 230256/230257/230258/230258/230260

Bow Shackles – BC
with Eye Bolt

(Ref. JIS B 2801-1977)

[Diagram BC]

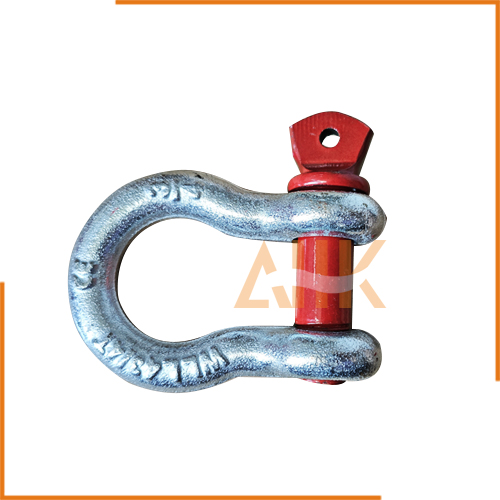

Weldless, drop forged, carbon steel shackle with an eye bolt which has a metric coarse threaded end.

Please specify Ungalvanized (Black) or Galvanized shackle is required.

Unit Per Pc.

CODE Oval Body
Small Diam.
mm		 Opening
mm		 Screw Pin
Thread		 Clear Length
mm		 Pin Diam.
mm		 S.W.L.
Ton
Ungalv.
(Black)		 Galv.
23 14 51 23 02 51 6 11 M 8 32 8 0.2
23 14 52 23 02 52 8 14 M10 40 10 0.35
23 14 53 23 02 53 10 17 M12 48 12 0.6
23 02 54 23 14 54 12 20 M14 55 15 0.9
23 02 55 23 1455 14 24 M16 63 17 1.2
23 02 56 23 14 56 16 26 M18 70 19 1.5
23 02 57 23 1457 18 29 M20 84 21 2.0
23 02 58 23 1458 20 31 M24 92 24 2.5
23 02 59 23 1459 22 34 M24 104 26 3.0
23 02 60 23 1460 24 39 M30 111 30 3.6
23 02 61 23 14 61 26 41 M30 119 32 4.2
23 02 62 23 14 62 28 43 M33 127 34 4.8
23 02 63 23 14 63 30 45 M36 135 36 5.4
23 02 64 23 14 64 32 48 M36 148 38 6.2
23 02 65 23 14 65 34 50 M39 156 40 7.0
23 02 66 23 14 66 36 54 M42 169 42 8.0
23 02 67 23 14 67 38 57 M45 175 46 9.0
23 02 68 23 14 68 40 60 M48 188 48 10.0



Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
CODE
Ungalv.
(Black)		 Galv Oval Body
Small Diam
mm		 Opening
mm		 Slcrew Pin Thread Clear
Length
mm		 Pin
Diam
mm		 S.W.L.
Ton
23 02 56 23 14 56 16 26 M18 70 19 1.5
23 02 57 23 14 57 18 29 M20 84 21 2
23 02 58 23 14 58 20 31 M24 92 24 2.5
23 02 59 23 14 59 22 34 M24 104 26 3
23 02 60 23 14 60 24 39 M30 111 30 3.6
