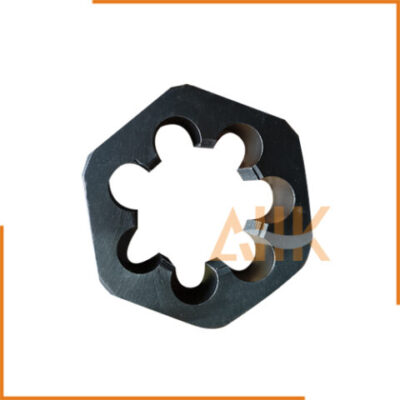

Carbon Steel Hexagon Rethreading Dies
Hexagon Rethreading Dies
Carbon Steel
Coijnetes “Rethreading” Hexagonales
六角ダイス 六角螺模
For dressing over bruised or rusty threads, or for cutting occasional new threads. No special holder required for these dies, simply use the appropriate sized wrench.
| CODE | Nominal Size | Pitch mm | Across Flat mm |
|---|---|---|---|
| 63 21 01 | M 3 | 0.5 | 14 |
| 63 21 02 | M 3 | 0.6 | 14 |
| 63 21 03 | M 3.5 | 0.6 | 14 |
| 63 21 04 | M 4 | 0.7 | 14 |
| 63 21 05 | M 4 | 0.75 | 14 |
| 63 21 06 | M 4.5 | 0.75 | 14 |
| 63 21 07 | M 5 | 0.8 | 17 |
| 63 21 08 | M 5 | 0.9 | 17 |
| 63 21 09 | M 5.5 | 0.9 | 17 |
| 63 21 10 | M 6 | 1.0 | 19 |
| 63 21 11 | M 7 | 1.0 | 19 |
| 63 21 12 | M 8 | 1.25 | 21 |
| 63 21 13 | M 9 | 1.25 | 21 |
| 63 21 14 | M 10 | 1.5 | 26 |
| 63 21 15 | M 11 | 1.5 | 26 |
| 63 21 16 | M 12 | 1.75 | 32 |
| 63 21 17 | M 14 | 2.0 | 35 |
| 63 21 18 | M 16 | 2.0 | 35 |
| 63 21 19 | M 18 | 2.5 | 41 |
| 63 21 20 | M 20 | 2.5 | 46 |
| 63 21 21 | M 22 | 2.5 | 46 |
| 63 21 22 | M 24 | 3.0 | 50 |
| 63 21 23 | M 27 | 3.0 | 54 |
| 63 21 24 | M 30 | 3.5 | 54 |
Straight or Taper Pipe Thread
Rosca para Tubería Recta o Cónica 管用平行及テーパーねじ 圆柱管螺纹六角校牙板牙
How to order: CODE
Hexagon rethreading die, TYPE of PIPE THREAD, NOMINAL SIZE, THREAD
Unit Per Pc.
| CODE | Nominal Size | Thread Per 25.4 mm | Across Flat mm |
|---|---|---|---|
| Straight | |||
| 63 21 61 | PF 1/8 | 28 | 38 |
| 63 21 62 | PF 1/4 | 19 | 38 |
| 63 21 63 | PF 3/8 | 19 | 50 |
| 63 21 64 | PF 1/2 | 14 | 50 |
| 63 21 65 | PF 3/4 | 14 | 63 |
| 63 21 66 | PF 1 | 11 | 75 |
| 63 21 67 | PF 1-1/4 | 11 | 75 |
| 63 21 68 | PF 1-3/8 | 11 | 75 |
| 63 21 69 | PF 1-1/2 | 11 | 75 |
| 63 21 70 | PF 1-3/4 | 11 | 90 |
| 63 21 71 | PF 2 | 11 | 90 |
| Taper | |||
| 63 21 76 | PT 1/8 | 28 | 38 |
| 63 21 77 | PT 1/4 | 19 | 38 |
| 63 21 78 | PT 3/8 | 19 | 50 |
| 63 21 79 | PT 1/2 | 14 | 50 |
| 63 21 80 | PT 3/4 | 14 | 63 |
| 63 21 81 | PT 1 | 11 | 75 |
| 63 21 82 | PT 1-1/4 | 11 | 75 |
| 63 21 83 | PT 1-3/8 | 11 | 75 |
| 63 21 84 | PT 1-1/2 | 11 | 75 |
| 63 21 85 | PT 1-3/4 | 11 | 90 |
| 63 21 86 | PT 2 | 11 | 90 |
Unit Per Pc.
| CODE | Nominal Size | Thread Per inch | Across Flat mm |
|---|---|---|---|
| 63 21 31 | W 1/8 | 40 | 17 |
| 63 21 32 | W 3/16 | 24 | 17 |
| 63 21 33 | W 1/4 | 20 | 19 |
| 63 21 34 | W 5/16 | 18 | 21 |
| 63 21 35 | W 3/8 | 16 | 26 |
| 63 21 36 | W 7/16 | 14 | 26 |
| 63 21 37 | W 1/2 | 12 | 32 |
| 63 21 38 | W 9/16 | 12 | 35 |
| 63 21 39 | W 5/8 | 11 | 35 |
| 63 21 40 | W 3/4 | 10 | 41 |
| 63 21 41 | W 7/8 | 9 | 46 |
| 63 21 42 | W 1 | 8 | 50 |
| 63 21 43 | W 1-1/8 | 7 | 54 |
| 63 21 44 | W 1-1/4 | 7 | 58 |
| 63 21 45 | W 1-3/8 | 6 | 63 |
| 63 21 46 | W 1-1/2 | 6 | 71 |
| 63 21 47 | W 1-5/8 | 5 | 77 |
| 63 21 48 | W 1-3/4 | 5 | 85 |
| 63 21 49 | W 1-7/8 | 4-1/2 | 85 |
| 63 21 50 | W 2 | 4-1/2 | 90 |
