IMPA Code: 795730.001

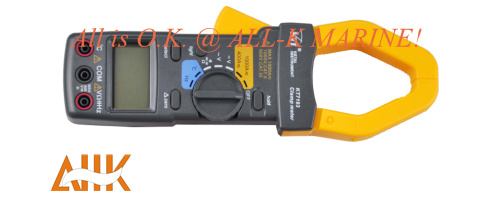

Generally a current is measured by closing the clamp meter jaws over the conductor. The specially shaped mating heads of the clamp form a closed magnetic circuit with cable passing through it.
| CODE | 795730 |
| Model | DCM-60L |
| ACA | 200/600A +(2.0%+5)/-(2.0%+5)50-60HZ
+(2.9%+5)/-(2.9%+5)50-60HZ |
| ACA | 200/600A +(1.5%+5)/-(1.5%+5)50-60HZ |
| Ω | 200Ω +(1.9%+3)/-(1.9%+3) |
| Continyity | Buzzer sounds at less than 100Ω |
| Clamp Diameter/conductor Size | 21mm/10X30mm |
| Withstand Voltage | Less than AC 3700Vrms (Root Mean Square) |
| Power Source | R-03(UN-4 or AAA)1.5v X 2pc |
| Size /Weight | L187XW50XH29mm/200grm |
