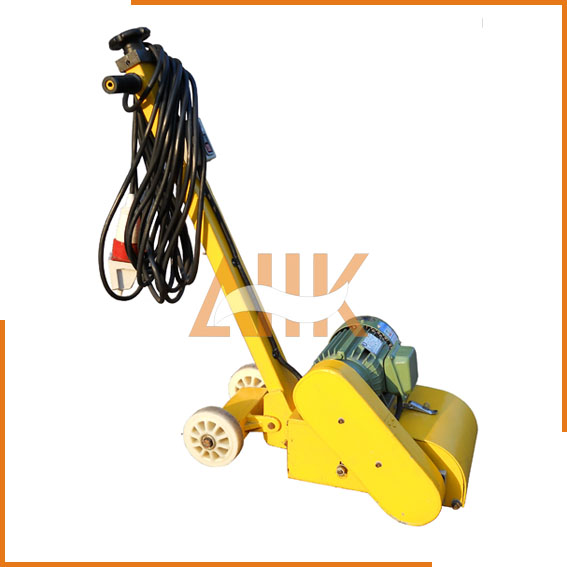

Electric Deck Scaler
IMPA Code: 590409
KC-120
Electric Deck Scaler – IMPA 590409
Supplied by ALL-K MARINE CO., LTD
Product Overview
The IMPA 590409 Electric Deck Scaler is a heavy-duty surface preparation machine designed for efficient rust and paint removal on ship decks. Engineered for durability and ease of use, it features a powerful 2.2kW motor and a comfortable handle design to reduce operator fatigue during long operations.
Key Features:
- Extended Reach: Equipped with a 20m cable, allowing for greater mobility without frequent power changes.
- Efficient Scaling: Offers a 200mm scaling width for fast coverage of large deck areas.
- Versatile Voltage: Available in multiple configurations (220V, 380V, 440V) to suit different vessel power systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| IMPA Code | 590409 |
| Model | KC-120 |
| Motor Power | 2.2 kW (3 HP) |
| Scaling Width | 200 mm |
| Cable Length | 20 meters |
| Available Voltages | 220V / 380V / 440V (Triple Phase) |
Compatible Spare Parts & Assemblies
ALL-K MARINE ensures full support for your maintenance equipment. We supply a comprehensive range of spare parts for the IMPA 590409 Deck Scaler to keep your machine running at peak performance.
- IMPA 590418 – Cutter Drum Assembly: The core rotating component for standard scaling operations.
- IMPA 590417 – Cutter Blade Assembly: Replacement blades for the cutter drum to ensure sharp cutting efficiency.
- IMPA 591975 – Chain Drum Assembly: An alternative configuration using chains for aggressive surface impact.
- IMPA 592409 – Tungsten Carbide Cutters: High-durability cutters designed for extremely hard surfaces and extended service life.
- IMPA 591969 – Star Cutter Assembly: Specialized star-shaped cutters for unique surface textures.
G.W.: 100 kgs
Mea: 66x47x114 cm
Electric Rotary Deck Scaler
Product Overview
Designed for heavy-duty marine maintenance, the IMPA 59 04 09 Deck Scaler (Model KC-120) is an essential tool for removing scales and surface paint from ship decks.
Operator-Centric Design
Unlike traditional handheld scalers, this machine features an upright handle allowing the operator to stand during use. This significantly relieves fatigue and protects the operator’s eyes from dust and chipped metal debris.
The unit utilizes a Rotary Scaling System, offering versatility for different surface conditions. It is powered by a robust 2.2 kW (3 HP) electric motor.
Technical Specifications
| IMPA Code | 59 04 09 |
|---|---|
| Model Name | KC-120 |
| Scaling System | Rotary Scaling System |
| Heads & Accessories |
|
| Electrical Motor | AC 220 V or 440 V 3 phase 3 HP (2.2 kW) |
| Rotation Speed (R.P.M.) | 3,470 min⁻¹ |
| Scaling Width | 300 mm |
| Machine Weight | 120 kg |
