IMPA 5906 Electric Driven Winches | Marine Cargo Lifting Winch 100-500kg

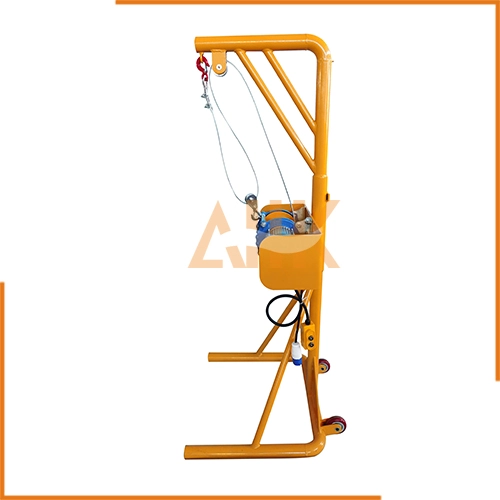

IMPA 5906 Series Electric Driven Winches are specially engineered for lifting goods from ship tanks, ship bottoms, and cargo holds. Featuring a robust steel frame with an integrated winding wheel for easy wire rope management, these marine winches deliver reliable performance in demanding maritime environments.
Stock available from 100 kg to 400 kg capacity with 110V~220V single-phase power supply. 500 kg heavy-duty models and 440V three-phase configurations are also available upon request.
Technical Specifications
| IMPA CODE | Lifting Capacity Kgs |
Lifting Speed (Mtr/Min) |
Wire Rope | Voltage | Power | Frequency | Weight kgs |
||
|---|---|---|---|---|---|---|---|---|---|
| Diam. mm |
Length mtr |
||||||||
| 59 06 08 59 06 10 |
100 | 30 | 5 | 42 | 110V 1ph 220V 1ph |
— | 60Hz 50/60Hz |
66 | |
| 59 06 13 59 06 24 |
150 | 26 | 5 | 42 | 110V 1ph 220V 1ph |
— | 60Hz 50/60Hz |
68 | |
| 59 06 30 59 06 36 |
200 | 24 | 5 | 40 | 110V 1ph 220V 1ph |
— | 60Hz 50/60Hz |
70 | |
| 59 06 38 59 06 39 |
250 | 22 | 5 | 35 | 110V 1ph 220V 1ph |
— | 60Hz 50/60Hz |
80 | |
| 59 06 40 59 06 50 |
300 | 12 | 6 | 40 | 110V 1ph 220V 1ph |
2.2 kW | 60Hz 50/60Hz |
80 | |
| 59 06 58 59 06 59 |
400 | 12 | 6 | 40 | 110V 1ph 220V 1ph |
2.2 kW | 60Hz 50/60Hz |
85 | |
| 590659220500 590659440500 |
500 | 12 | 6 | 40 | 220V 1ph 440V 3ph |
3.0 kW | 50/60Hz 60Hz |
— | |
Key Applications
- Ship tank maintenance and cleaning operations
- Cargo hold loading and unloading
- Ship bottom repair and inspection
- Marine workshop material handling
- Offshore platform auxiliary lifting
Product Features
- Capacity Range: 100 kg to 500 kg (IMPA 590608 – 590659)
- Voltage Options: 110V 1ph / 220V 1ph / 440V 3ph
- Wire Rope: Galvanized steel, 5 – 6 mm diameter, 35 – 42 m length
- Lifting Speed: 12 m/min for heavy-duty models (300 – 500 kg)
- Frame: Heavy-duty steel construction with powder-coat finish
- Mobility: Winding wheel equipped for easy removal and relocation
- Safety: UP / DOWN push-button control with instant release stop
Environmental Conditions
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -25°C to +55°C
- Humidity: Up to 95% RH (non-condensing)
Frequently Asked Questions
What is the IMPA code for a 400 kg electric winch?
IMPA 590658 (110V) and IMPA 590659 (220V) correspond to the 400 kg electric driven winch with 40 m wire rope and 2.2 kW motor.
Can I use this winch for ship tank cleaning operations?
Yes. The IMPA 5906 series is specifically designed for lifting equipment and goods from ship tanks, ship bottoms, and cargo holds during maintenance and cleaning.
Is a 500 kg model available?
Yes. The 500 kg electric winch is available upon request in 220V single-phase and 440V three-phase configurations, both with 3.0 kW power and 40 m wire rope.
What is the wire rope length for the 300 kg winch?
The 300 kg model (IMPA 590640 / 590650) is equipped with a 40-meter, 6 mm diameter galvanized steel wire rope.
What safety precautions should be followed?
Only trained personnel should operate the winch. Always wear PPE (helmet, gloves, goggles), ensure the power is disconnected during maintenance, and keep the work area dry and well-lit.
Compliance & Certification
CE Certified
IP54 Protection
Electric driven winch specially designed for lifting goods from ship tank, ship bottom. Frame equipped with winding wheel for easy removal. Available from 100-400 kgs capacity, 110-220 voltage.
| Wire Rope | |||||
| CODE | Lifting Capacity kgs |
Lifting Speed (Mtr/Min) |
Diam. mm |
Length mm |
Weight kgs |
| 590608 | 100 | 30 | 5 | 110V | 66 |
| 590610 | 220V | ||||
| 590613 | 150 | 26 | 5 | 110V | 68 |
| 590624 | 220V | ||||
| 590630 | 200 | 24 | 5 | 110V | 79 |
| 590636 | 220V | ||||
| 590638 | 250 | 22 | 5 | 110V | 80 |
| 590639 | 220V | ||||
| 590640 | 300 | 20 | 6 | 110V | 80 |
| 590650 | 220V | ||||
| 590658 | 400 | 18 | 6 | 110V | 85 |
| 590659 | 220V | ||||
ALL-K Marine Electric Driven Winch for Ship Tank & Bottom Operations
High-Performance Electric Winch for Marine Applications
The ALL-K Series Electric Driven Winch is specifically engineered for heavy-duty lifting operations in ship tanks and ship bottoms. Featuring rugged marine-grade construction with an integrated winding wheel system, our winches provide superior performance in the most demanding maritime environments.
Technical Specifications:
| Model Code | Capacity (kg) | Lifting Speed (Mtr/Min) | Wire Røpe Diameter (mm) | Voltage | Unit Weight (kg) |
|---|---|---|---|---|---|
| 590608 | 100 | 30 | 5 | 110V | 66 |
| 590610 | 100 | 30 | 5 | 220V | 66 |
| 590613 | 150 | 26 | 5 | 110V | 68 |
| 590624 | 150 | 26 | 5 | 220V | 68 |
| 590630 | 200 | 24 | 5 | 110V | 79 |
| 590636 | 200 | 24 | 5 | 220V | 79 |
| 590638 | 250 | 22 | 5 | 110V | 80 |
| 590639 | 250 | 22 | 5 | 220V | 80 |
| 590640 | 300 | 20 | 6 | 110V | 80 |
| 590650 | 300 | 20 | 6 | 220V | 80 |
| 590658 | 400 | 18 | 6 | 110V | 85 |
| 590659 | 400 | 18 | 6 | 220V | 85 |
Standard Features:
- Heavy-duty construction: Marine-grade steel frame with corrosion-resistant coating
- Precision gearing: Helical gear system for smooth and quiet operation
- Enhanced safety: Automatic brake system and overload protection
- Easy maintenance: Removable winding wheel for quick rope replacement
- Versatile mounting: Multiple mounting points for flexible installation
Performance Data:
- Capacity range: 100kg (0.98kN) to 400kg (3.92kN)
- Lifting speeds: 18-30 meters per minute (decreasing with higher capacities)
- Wire rope specifications:
- 5mm diameter for 100-250kg models
- 6mm diameter for 300-400kg models
- High-strength galvanized steel construction
- Electrical specifications:
- Dual voltage options: 110V and 220V models
- IP54 protection rating for marine environments
Note: All technical specifications are based on standard conditions. Actual performance may vary depending on installation and operating conditions. The ALL-K Electric Driven Winch series complies with international marine equipment standards including CE certifications.
