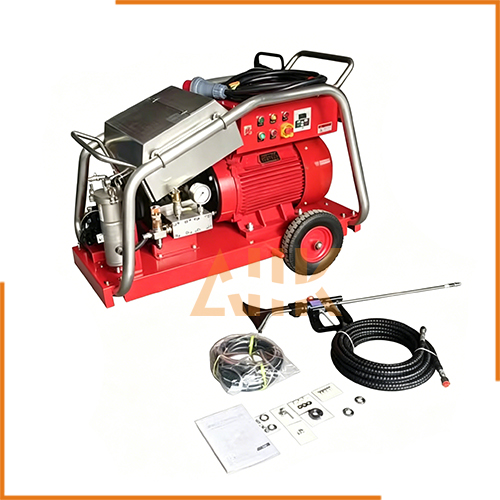

Electric High Pressure Water Blaster 1100Bar
IMPA:590874
| Working pressure | MAX1100 Bar(15950 PSl) |
| Water Flow | 20 L/min |
| Power | 37KW |
| Temperature | 60°C |
| Cable length | 5M |
| Voltage | 380/440V 50/60Hz |
| Motor speed | 1000 R.P.M. |
| Weight | 650 KG |
| Size | 1650x950x1220mm |
1100 BAR Ultra High Pressure Cleaner – Technical Data
ALL-K MARINE CO., LTD.
Website: www.all-kmarine.com | Email: admin@all-kmarine.com.cn
Performance Specifications
| Maximum Working Pressure | 1100 BAR / 15,950 PSI / 110 MPa |
| Water Flow Rate | 20 Liters/minute (5.3 GPM) at rated pressure |
| Motor Power Output | 37 kW (50 HP) – 6 Stage Low Speed Industrial Motor |
| Power Supply | 380-440V AC, 3-Phase, 50/60 Hz |
| Operating Speed | 1000 RPM (low speed for extended pump life) |
| Max Inlet Water Temp | 60°C (140°F) |
| Duty Cycle | Continuous 24-Hour Operation capability |
| Pump Configuration | Stainless Steel Crankshaft-Driven Triplex Plunger Pump |
Physical Configuration
| High Pressure Hose | 20 meters (65.6 feet) – Steel reinforced, quick-connect couplings |
| Power Cable | 5 meters (16.4 feet) – Heavy duty marine grade |
| Water Inlet System | Multi-stage inlet filter with quick-connect fitting |
| Pressure Regulation | Manual adjustment valve with precision pressure gauge |
| Safety Systems | Multiple circuit protection, thermal overload, safety relief valve |
| Frame Construction | Heavy duty powder-coated steel (stainless steel optional) |
| Water Cannon | Professional trigger gun rated for 1100 BAR with safety lock |
| Nozzle Set | 4 precision fan-shaped nozzles: 0°, 15°, 25°, 40° spray patterns |
Marine & Industrial Applications
- Ship Hull Cleaning: Removal of marine growth, barnacles, and fouling from vessel hulls
- Deck Surface Preparation: High-pressure washing for deck recoating and non-slip surface renewal
- Rust & Paint Removal: Surface preparation for anti-corrosion coating applications
- Cargo Hold Cleaning: Deep cleaning of bulk carrier holds and tank interiors
- Offshore Platform Maintenance: Heavy duty cleaning for oil rig structures and equipment
- Marine Concrete Works: Concrete renovation and hydro-demolition in port facilities
Key Features
- Corrosion Resistant Construction: Stainless steel pump head for harsh marine conditions
- Continuous Operation: Built for 24-hour non-stop operation during vessel maintenance
- Low RPM Motor: 1000 RPM reduces wear and extends service intervals
- Adjustable Pressure: Manual regulation from 0 to 1100 BAR for various cleaning tasks
- Advanced Protection: Multiple circuit protection including thermal overload safeguards
- Heavy Duty Filtration: Inlet filter prevents pump damage from harbor water debris
- Safety Engineering: Redundant safety valves and burst disc protection
- Quick Change Nozzles: Fast-switch fan nozzles for different marine applications
Contact Information
ALL-K MARINE CO., LTD.
Website: www.all-kmarine.com
Email: admin@all-kmarine.com.cn
Note: Specifications are subject to continuous improvement. Maximum operating pressure must not be exceeded.
Always use appropriate personal protective equipment (PPE) when operating ultra-high pressure cleaning equipment.
Pressure ratings are measured at pump outlet; actual working pressure may vary based on hose length and nozzle selection.
Document: TDS-1100BAR-MARINE | © 2026 ALL-K MARINE CO., LTD. All rights reserved.
