IMPA: 590858/590859e/590864/590865/590870
Applications: General cleaning, washing of salt spray, removal of lose paint & rust. Cleaning in holds & transfer pipes. Cleaning scaffolding material. Removal of lime scale deposits and marine growth. Removal of oil & grease from decks & machinery. Dust free wet abrasive sand blasting & pipe cleaning with accessories.
Unit Per Set
| CODE | 59 08 70 | 59 08 58 | 59 08 59 |
|---|---|---|---|

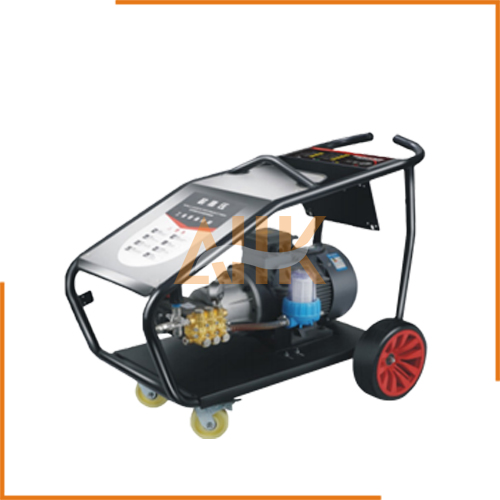

| Model | Merlion Plus E-250 |
Merlion Plus E-350 |
Merlion Plus E-500 |
| Pressure | 250 bar (3,625 psi) |
350 bar (5,075 psi) |
500 bar (7,250 psi) |
| Power (Elec. Motor) | 24 HP (17.9 KW) | ||
| Flow Rate | 26 ltr/min. | 21 ltr/min. | 16 ltr/min. |
| Electric Supply | AC 440V 3 ph 60 Hz | ||
| Motor Speed | 1,750 rpm | ||
| Dimensions L×W×H | 1,060 x 730 x 970 mm | ||
| Weight | 235 kgs | 240 kgs | |
| Code | Working Pressure | Water Flow | Power | Voltage | |||
| Bar | PSI | L/min | KW | HP | V | Hz | |
| 590870 | 250 | 3625 | 26 | 17.9 | 24 | 3-440 | 60 |
| 590858 | 350 | 5075 | 21 | 17.9 | 24 | 3-440 | 60 |
| 590859 | 500 | 7250 | 16 | 17.9 | 24 | 3-440 | 60 |
| 590864 | 500 | 7250 | 16.5 | 15 | 20 | 380-440 | 50 |
| 590865 | 500 | 7250 | 19 | 15 | 20 | 380-440 | 60 |
