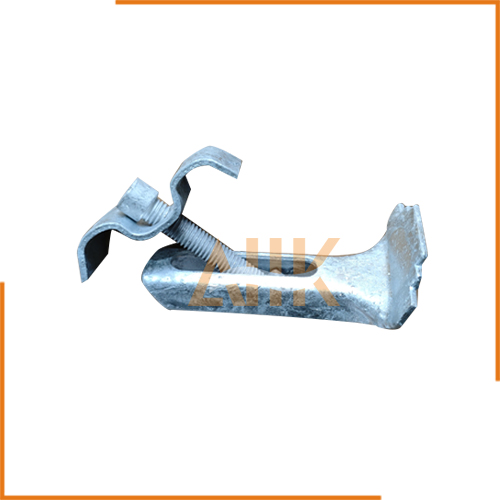

Heavy-Duty Galvanized Hook for Steel Grating – Marine Grade Fixing Clip
Secure your steel grating panels with confidence using the All-K Marine Galvanized Grating Hook. Engineered for harsh marine environments, this hot-dip galvanized fixing clip provides exceptional corrosion resistance, high load-bearing stability, and rapid installation for ship decks, offshore platforms, and industrial walkways.
Product Overview
The Hook for Grating Galvanized is a critical safety component in marine construction and industrial maintenance. Designed to firmly lock steel grating panels to supporting structures, our hooks eliminate panel movement and ensure a safe, non-slip walking surface.
Unlike standard fasteners, our hooks undergo a rigorous hot-dip galvanizing process (ISO 1461), creating a thick zinc coating that withstands saltwater spray, high humidity, and chemical exposure typical in offshore and shipbuilding applications.
Key Features & Benefits
- Superior Corrosion Resistance: Hot-dip galvanized finish ensures long-term durability in salty, wet marine environments, preventing rust and extending service life significantly compared to electro-plated alternatives.
- High Load-Bearing Capacity: Manufactured from high-tensile carbon steel, these hooks are designed to withstand heavy foot traffic, vibration, and dynamic loads without deformation.
- Rapid, Tool-Free Installation: The innovative clamp design allows for quick installation and removal of grating panels for maintenance access, reducing labor costs and downtime.
- Universal Compatibility: Compatible with most standard serrated and plain steel grating types used in shipyards, oil rigs, and water treatment plants.
- Safety Compliant: Meets international marine hardware safety standards, ensuring secure fixation to prevent accidents and panel displacement.
Technical Specifications
| Material | Low Carbon Steel (Q235 / A36) |
|---|---|
| Surface Treatment | Hot-Dip Galvanized (Average coating thickness ≥ 65µm) |
| Applicable Grating Thickness | 25mm – 50mm (Custom sizes available upon request) |
| Load Bearing Capacity | ≥ 2.5 kN (Tested per marine standards) |
| Operating Temperature | -40°C to +80°C |
| Standards Compliance | ISO 1461, ASTM A123, Marine Hardware Specs |
| Packaging | Bulk carton or wooden pallet (Export standard seaworthy packaging) |
Primary Applications
Our galvanized grating hooks are widely trusted in:
- Marine Vessels: Ship decks, engine room walkways, gangways, and helidecks.
- Offshore Platforms: Oil rigs, drilling platforms, FPSO units, and wind turbine foundations.
- Industrial Facilities: Chemical plants, water treatment facilities, power stations, and mining operations where corrosion resistance is vital.
- Infrastructure: Bridges, docks, pier walkways, and trench covers.
Installation Guide
- Position the steel grating panel securely onto the supporting beam.
- Place the galvanized hook over the intersection of the grating bearing bar and the support structure.
- Engage the locking mechanism (bolt/nut or spring-loaded clip) until the hook is tightly secured.
- Inspect to ensure the hook is flush against the grating and the panel is immobile.
Frequently Asked Questions (FAQ)
Hot-dip galvanizing immerses the steel in molten zinc, creating a thick, metallurgically bonded coating (typically 65-85µm) ideal for harsh marine environments. Electro-galvanizing offers a much thinner coat (5-10µm) suitable only for indoor, dry environments. All-K Marine exclusively uses hot-dip galvanizing for maximum rust protection.
Yes, our galvanized grating hooks are designed to be removable and reusable. This facilitates easy maintenance access to cables and pipes beneath the grating without damaging the protective zinc coating, provided they are removed carefully.
Absolutely. We can manufacture custom-sized hooks to fit specific grating thicknesses, bearing bar spacings, and load requirements. Contact our sales team for OEM customization options.
Order Now for Your Marine Project
Ensure the safety and longevity of your deck installations with All-K Marine’s premium galvanized hardware. We offer bulk discounts and global shipping.
Contact us today for a quote: Sales Team or email us atadmin@all-kmarine.com.cn.
