IMPA:617554/617555
Lubricating Hose
for Model SKR and SGR Series

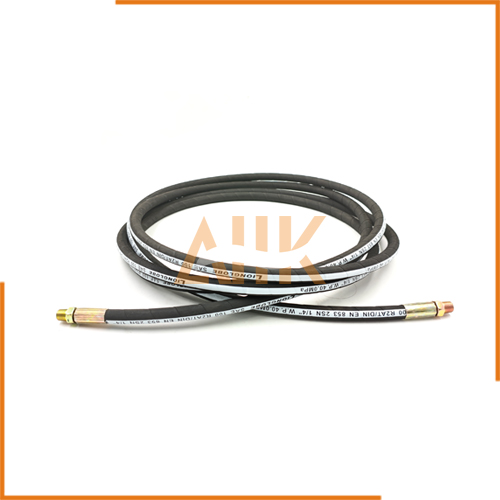

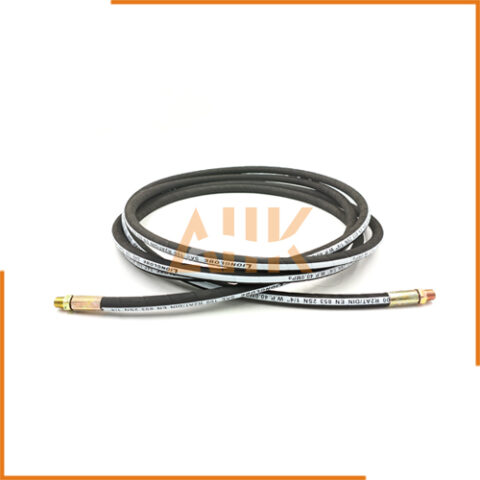

[Hose Image]
Max. Working Pressure
| SKR Grease Hose | 34.5 MPa | H.P. |
| SGR Oil Hose | 7 MPa | L.P. |
How to order : CODE
GREASE or OIL hose, DIAM x LENGTH, with fitting, PART/NO.
Unit Per Lgh
| CODE | P/N | Size | Fitting at Both Ends |
|
|---|---|---|---|---|
| Diam. | Length | |||
| SKR Grease Hose | ||||
| 61 75 51 | 695062 | 1/4 | 1.5 Mtrs. | PF1/4 Male Thread (G) |
| 61 75 52 | 695050 | 2 “ | ||
| 61 75 53 | 695034 | 2.5 “ | ||
| 61 75 54 | 695049 | 3 “ | ||
| 61 75 55 | 695098 | 5 “ | ||
| 61 75 56 | 695099 | 10 “ | ||
| SGR Oil Hose | ||||
| 61 75 57 | 695052 | 3/8 | 1.5 Mtrs. | PT3/8 Male Thread (R) |
| 61 75 58 | 695051 | 2 “ | ||
| 61 75 59 | 695103 | 3 “ | ||
| 61 75 60 | 695700 | 1/2 | 3 “ | PT1/2 Male Thread (R) |
