IMPA Code:750121/750122/750123/750124/750125/750126/750127
| CODE | Size mm |
Dimensions mm | Weight | ||||
| Face to Face |
Flange Diam. |
Flange Bolt Hole | |||||
| Pitch | Number | Hole | |||||

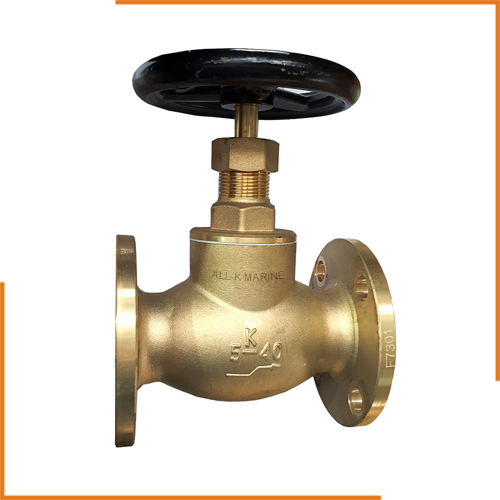

| Globe Valve F-7301 | |||||||
| 750121 | 15 | 100 | 80 | 60 | 4 | 12 | 2.02 |
| 750122 | 20 | 110 | 85 | 65 | 4 | 12 | 2.86 |
| 750123 | 25 | 120 | 95 | 75 | 4 | 12 | 3.54 |
| 750124 | 32 | 140 | 115 | 90 | 4 | 15 | 5.00 |
| 750125 | 40 | 160 | 120 | 95 | 4 | 15 | 6.48 |
| 750126 | 50 | 210 | 130 | 105 | 4 | 15 | 11.7 |
| 750127 | 65 | 250 | 155 | 130 | 4 | 15 | 17.0 |
