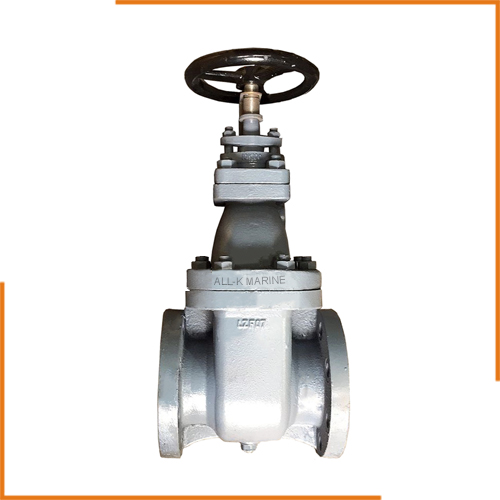

Marine Cast Iron 10 kgf/cm2 Gate Valves F-7364

Marine Cast Iron 10 kgf/cm2 Gate Valves F-7364

Category:

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
INQUIRY

IMPA Code: 750821/750822/750823/750824/750825/750826/750827/750828/750829/750830/750831/

750832/750833/750834/750835

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
CODE Size
mm		 Dimensions mm Weight
Kgs
Face
to
Face		 Flange
Diam.		 Flange Bolt Hole
Pitch Number Hole
750821 50 200 155 120 4 19 19.4
750822 65 220 175 140 4 19 27.6
750823 80 230 185 150 8 19 33
750824 100 250 210 175 8 19 45.8
750825 125 270 250 210 8 23 65.9
750826 150 290 280 240 8 23 86
750827 200 320 330 290 12 23 136
750828 250 380 400 355 12 25 230
750829 300 440 445 400 16 25 331
750830 350 500 490 445 16 25 433
750831 400 590 560 510 16 27 597
750832 450 640 620 565 20 27 704
750833 500 710 675 620 20 27 901
750834 550 780 745 680 20 33 1192
750835 600 850 795 730 24 33 1490
