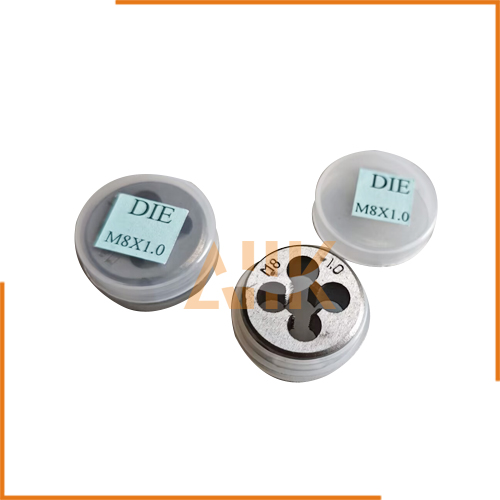

Metric Fine Thread Dies Carbon Steel
IMPA:
| 631801/631802/631803/631804/631805/631806/631807/631808/631809/631810/631811/631812/631813/631814/631815/
631816/631817/631818/631819/631820/631821/631822/631823/631824/631825/631826/631827/631828/631829/631830/ 631831/631832/631833/631834/631835/631836/631837/631838/631839/631840/631841/631842/631843/631844/631845/ 631846/631847/631848/631849/631850/631851/631852/631853/631854/631855/631856/631857/631858/631859/631860/ 631861/631862/631863/631864/631865/631866/631867/631868/631869/631870/631871/631872/631873/631874/631875/ 631876/631877/631878/631879/631880/631881/631882/631883 |
| CODE | Nrminal size | O.D.mm | Th’k mm | |
| D | B | |||
| 6318 01 | M 1.0×0.2 | 16 | 5 | |
| 6318 02 | M 1.1×0.2 | |||
| 6318 03 | M 1.2×0.2 | |||
| 6318 04 | M 1.4×0.2 | |||
| 6318 05 | M 1.6×0.2 | |||
| 6318 06 | M 1.8×0.2 | |||
| 6318 07 | M 2×0.25 | |||
| 6318 08 | M 2.2×0.25 | |||
| 6318 09 | M 2.5×0.35 | |||
| 6318 10 | M 3×0.35 | 20 | 7 | |
| 6318 11 | M 3.5×0.35 | |||
| 6318 12 | M 4×0.5 | |||
| 6318 13 | M 4.5×0.5 | |||
| 6318 14 | M 5×0.5 | |||
| 6318 15 | M 5.5×0.5 | |||
| 6318 16 | M 6×0.75 | |||
| 6318 17 | M 7×0.75 | 25 | 9 | |
| 6318 18 | M 82×1 | |||
| 6318 19 | M 8×0.75 | |||
| 6318 20 | M 9×1 | |||
| 6318 21 | M 9×0.75 | |||
| 6318 22 | M 10×1.25 | 38 | 13 | |
| 6318 23 | M 10×1 | |||
| 6318 24 | M 10×0.75 | |||
| 6318 25 | M 11×1 | |||
| 6318 26 | M 11×0.75 | |||
| 6318 27 | M 12×1.5 | |||
| 6318 28 | M 12×1.25 | |||
| 6318 29 | M 12×1 | |||
| 6318 30 | M 14×1.5 | |||
| 6318 31 | M 14×1 | |||
| 6318 32 | M 15×1.5 | 50 | 16 | |
| 6318 33 | M 15×1 | |||
| 6318 34 | M 16×1.5 | |||
| 6318 35 | M 16×1 | |||
| 6318 36 | M 17×1.5 | |||
| 6318 37 | M 17×1 | |||
| 6318 38 | M 18×2 | |||
| 6318 39 | M 18×1.5 | |||
| 6318 40 | M 18×1 | |||
| 6318 41 | M 20×2 | |||
| 6318 42 | M 20×1.5 | |||
| 6318 43 | M 20×1 | |||
| 6318 44 | M 22×2 | 63 | 20 | |
| 6318 45 | M 22×1.5 | |||
| 6318 46 | M 22×1 | |||
| 6318 47 | M 24×2 | |||
| 6318 48 | M 24×1.5 | |||
| 6318 49 | M 24×1 | |||
| 6318 50 | M 25×2 | |||
| 6318 51 | M 25×1.5 | |||
| 6318 52 | M 25×1 | |||
| 6318 53 | M 26×1.5 | |||
| 6318 54 | M 27×2 | |||
| 6318 55 | M 27×1.5 | |||
| 6318 56 | M 27×1 | |||
| 6318 57 | M 28×2 | |||
| 6318 58 | M 28×1.5 | |||
| 6318 59 | M 28×1 | |||
| 6318 60 | M 30×3 | 75 | 25 | |
| 6318 61 | M 30×2 | |||
| 6318 62 | M 30×1.5 | |||
| 6318 63 | M 30×1 | |||
| 6318 64 | M 32×2 | |||
| 6318 65 | M 32×1.5 | |||
| 6318 66 | M 33×3 | |||
| 6318 67 | M 33×2 | |||
| 6318 68 | M 33×1.5 | |||
| 6318 69 | M 35×1.5 | |||
| 6318 70 | M 36×3 | |||
| 6318 71 | M 36×2 | |||
| 6318 72 | M 36×1.5 | |||
| 6318 73 | M 38×1.5 | |||
| 6318 74 | M 39×6 | |||
| 6318 75 | M 39×2 | |||
| 6318 76 | M 39×1.5 | |||
| 6318 77 | M 40×3 | |||
| 6318 78 | M 40×2 | |||
| 6318 79 | M 40×1.5 | |||
| 6318 80 | M 42×4 | |||
| 6318 81 | M 42×3 | |||
| 6318 82 | M 42×2 | |||
| 6318 83 | M 42×1.5 | |||
