IMPA:611315/611316/611317/611318/611319/
S-Type 45°
S type and 45° angled jaws with offset teeth in opposite direction. Teeth are additionally induction hardened.
Made of chrome vanadium steel, oil-hardened and tempered.

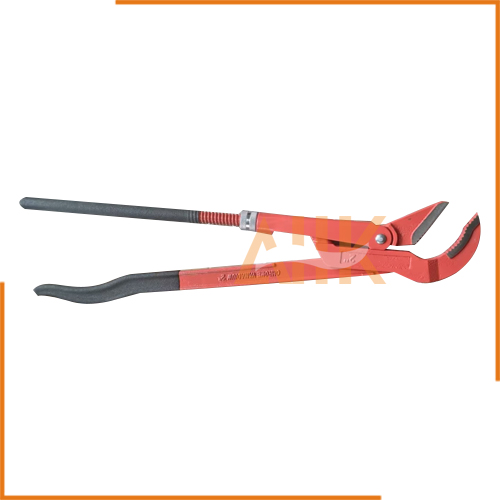

[Image: S-Type Pliers]
Unit Per Pc.
| CODE | Nom. Capacity |
Working Capacity mm |
Length mm |
Weight grm |
|---|---|---|---|---|
| 61 13 15 | 1/2″ | 0 – 35 | 245 | 500 |
| 61 13 16 | 1″ | 0 – 42 | 320 | 870 |
| 61 13 17 | 1-1/2″ | 0 – 60 | 420 | 1,570 |
| 61 13 18 | 2″ | 10 – 70 | 540 | 2,540 |
| 61 13 19 | 3″ | 10 – 120 | 680 | 4,295 |
| CODE | Nom. Capacity |
Working Capacity mm |
Length mm |
Weight grm |
| 611315 | 1/2″ | 0-25 | 245 | 500 |
| 611316 | 1″ | 0-42 | 320 | 870 |
| 611317 | 1-1/2″ | 0-60 | 420 | 1570 |
| 611318 | 2″ | 10-70 | 540 | 2540 |
| 611319 | 3″ | 10-120 | 680 | 4295 |
