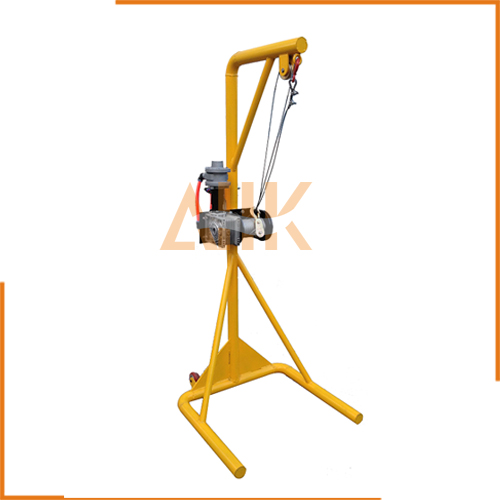

Pneumatic Mucking Winches
IMPA Code: 590601/590602/590603/590604/590605/590606/590607
| CODE | Lifting Capacity kgs |
Lifting Speed (Mtr/Min) |
Wire Rope | Air Hose Diam.mm |
Weight kgs |
|
| Diam. mm |
Length mtr |
|||||
| 590601 | 50 | 35 | 3 | 33 | 15 | 47 |
| 590602 | 75 | 35 | 3 | 33 | 15 | 50 |
| 590603 | 100 | 30 | 4 | 33 | 15 | 70 |
| 590604 | 150 | 25 | 6 | 33 | 19 | 75 |
| 590605 | 200 | 30 | 5 | 40 | 12 | 75 |
| 590606 | 250 | 20 | 6 | 33 | 25 | 120 |
| 590607 | 300 | 30 | 5 | 40 | 12 | 80 |
