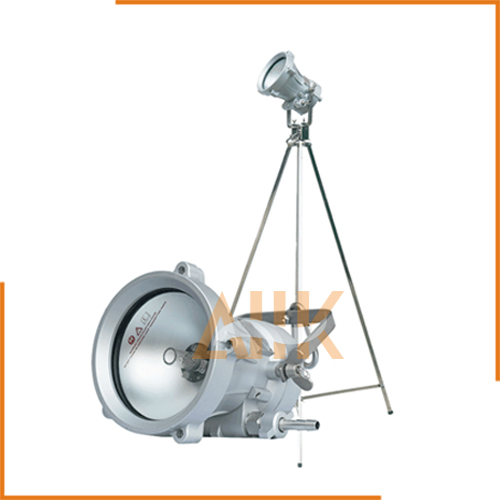

Pneumatic Light-ATEX Explosion Proof Air Turbo Light
IMPA:330637/330638
This BTL-2400 Air Turbo Light is a high-power compressed air-driven lamp that is ATEX Directive certified for safeuse in hazardous locations in zones 1,2,and zones 21,22.
Aluminum ultra-light construction illuminates shot-blasting, cleaning, coating storage tanks, vessels, pipelines, andstructural engineering activities. Offering safer alternative mains and low voltage lighting, where the explosiveatmospheres poses a serious risk to the workforce. Accessories can be included, such as Tripod stand.
It uses a 250 watts Halogen light output, offering briliant warm white output, high reliability, low maintenance lightsource provides high-quality ambient lighting.
Unit Per Set
| CODE | 330637 | 330638 |
|---|---|---|
| Model | A-TL45 | A-TL44 |
| Beam Type | Flood or Spot | Bay light (All-around 360° illumination) |
| Lens | Toughened glass (15 mm) |
Ball glass/ Polycarbonate dome |
| Area of Classification |
-20°C to + 40°C | |
| Certification | BASEEFA Ex 78209X | |
| Enclosure | Nickel plated brass and gun-metal | |
| Light Source; Type Volts Watts Output |
Tungsten halogen filled filament bulb | |
| 24 volt | ||
| 250 W | ||
| 6,000 lm (at 24 volt) | ||
| Air Pressure | 4.0 – 8.0 bar | |
| Consumption | 0.75 m³/min. | |
| Weight | 12.2 kgs | 7.9 kgs |
| Name of Mfr. | The Wolf Safety Lamp Company Ltd. | |
| Maximum surface temp. (Dusts): | 85° |
| Beam Type: | Flood light |
| Color Temperature: | 3,200K |
| Output: | 7,500 Lumens |
| Light Source Type: | Halogen lamp |
| Voltage/ Watts: | 24V/250W |
| Area: | Oil & Petrochemicals industries |
| Working Pressure: | 4.0-8.0 Bar |
| Inlet Air supply Hose: | Anti-static hose,inner diameter Ф1/2″(12mm) |
| Product Weight: | 8.0 KgS |
| Dimension: | Ф220*240mm |
| Packing: | 1 piece carton, size: 31*29*28cm |
