IMPA:650936/650937/650938/650939/650940/650941/650942/650943/650944/650945/
650946/650947/650948/650951/650952/650953/650954/650955/650956/650957/650958/
650959/650960/650961/650962/650963/
Precision Flat Try Squares
For machinists and tool makers.
Made of carbon tool steel. Two types are available as listed below based upon the degree of accuracy.
Graduated flat squares are also available upon request.
Made of carbon tool steel. Two types are available as listed below based upon the degree of accuracy.
Graduated flat squares are also available upon request.

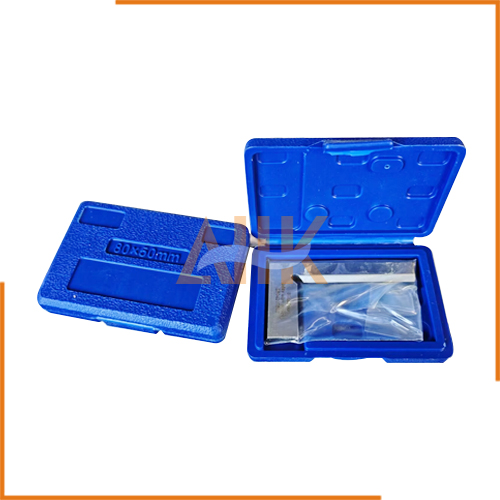

[Image: Try Square]
Unit Per Pc.
| 1 st. Grade | 2 nd. Grade | ||||
|---|---|---|---|---|---|
| CODE | Size mm | Tolerance (mm) | CODE | Size mm | Tolerance (mm) |
| 65 09 36 | 50 x 40 | 0.013 | 65 09 51 | 50 x 40 | 0.02 |
| 65 09 37 | 75 x 50 | 0.014 | 65 09 52 | 75 x 50 | 0.027 |
| 65 09 38 | 100 x 70 | 0.015 | 65 09 53 | 100 x 70 | 0.03 |
| 65 09 39 | 125 x 80 | 0.016 | 65 09 54 | 125 x 80 | 0.032 |
| 65 09 40 | 150 x 100 | 0.018 | 65 09 55 | 150 x 100 | 0.035 |
| 65 09 41 | 200 x 130 | 0.02 | 65 09 56 | 200 x 130 | 0.04 |
| 65 09 42 | 250 x 165 | 0.022 | 65 09 57 | 250 x 160 | 0.045 |
| 65 09 43 | 300 x 200 | 0.025 | 65 09 58 | 300 x 200 | 0.05 |
| 65 09 44 | 400 x 200 | 0.03 | 65 09 59 | 400 x 200 | 0.06 |
| 65 09 45 | 500 x 300 | 0.035 | 65 09 60 | 500 x 300 | 0.07 |
| 65 09 46 | 600 x 300 | 0.04 | 65 09 61 | 600 x 300 | 0.08 |
| 65 09 47 | 750 x 400 | 0.048 | 65 09 62 | 750 x 400 | 0.096 |
| 65 09 48 | 1,000 x 550 | 0.06 | 65 09 63 | 1,000 x 550 | 0.12 |
| CODE | Size mm | Tolerance mm |
CODE | Size mm | Tolerance mm |
| 1 st.Grade | 2 st.Grade | ||||
| 650936 | 50×40 | 0.013 | 650951 | 50×40 | 0.02 |
| 650937 | 75×50 | 0.014 | 650952 | 75×50 | 0.027 |
| 650938 | 100×70 | 0.015 | 650953 | 100×70 | 0.03 |
| 650939 | 125×80 | 0.016 | 650954 | 125×80 | 0.032 |
| 650940 | 150×100 | 0.018 | 650955 | 150×100 | 0.035 |
| 650941 | 200×130 | 0.02 | 650956 | 200×130 | 0.04 |
| 650942 | 250×165 | 0.022 | 650957 | 250×160 | 0.045 |
| 650943 | 300×200 | 0.025 | 650958 | 300×200 | 0.05 |
| 650944 | 400×200 | 0.03 | 650959 | 400×200 | 0.06 |
| 650945 | 500×300 | 0.035 | 650960 | 500×300 | 0.07 |
| 650946 | 600×300 | 0.04 | 650961 | 600×300 | 0.08 |
| 650947 | 750×400 | 0.048 | 650962 | 750×400 | 0.096 |
| 650948 | 1000×550 | 0.06 | 650963 | 1000×550 | 0.12 |
