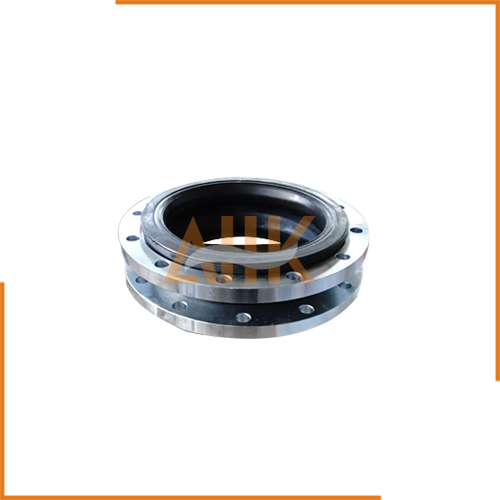

Rubber Bellow Expansion Joints with DIN Flanges
IMPA:
| 735141 |
| 735142 |
| 735143 |
| 735144 |
| 735145 |
| 735146 |
| 735147 |
| 735148 |
| 735149 |
| 735150 |
| 735151 |
| 735152 |
| 735153 |
| 735154 |
| 735155 |
| 735156 |
| 735157 |
| Size mm | |||||||
| CODE | ND | L | A | F | B | Max. Permitted Movement mm |
Weight kgs |
| 735141 | 25 | 130 | 115 | 72 | 14 | -30/+20 | 2.8 |
| 735142 | 32 | 130-150 | 140 | 72 | 2.8 | ||
| 735143 | 40 | 150 | 80 | 3.3 | |||
| 735144 | 50 | 165 | 90 | 3.7 | |||
| 735145 | 65 | 185 | 105 | 4.8 | |||
| 735146 | 80 | 130-150 | 200 | 120 | 15 | -30/+20 | 5.3 |
| 735147 | 100 | 220 | 140 | 15 | 6.2 | ||
| 735148 | 125 | 250 | 165 | 16 | 8.2 | ||
| 735149 | 150 | 285 | 190 | 18 | 11 | ||
| 735150 | 200 | 340 | 240 | 20 | 17 | ||
| 735151 | 250 | 130-150 | 395 | 290 | 23 | -30/+20 | 22 |
| 735152 | 300 | 445 | 340 | 27 | 30 | ||
| 735153 | 350 | 200 | 505 | 425 | 24 | 32 | |
| 735154 | 400 | 565 | 470 | 28 | 45 | ||
| 735155 | 450 | 615 | 510 | 28 | 52 | ||
| 735156 | 500 | 200 | 670 | 560 | 30 | -30/+20 | 63 |
| 735157 | 600 | 780 | 655 | 30 | 95 | ||
