Marine Grade Watertight Side Scuttles for Ships – IMO & SOLAS Compliant
Ensure the safety, visibility, and structural integrity of your vessel with All-K Marine Side Scuttles. Engineered to withstand harsh ocean conditions, our watertight portholes are available in premium Cast Bronze, Stainless Steel 316, and Cast Iron. Fully certified for merchant ships, naval vessels, offshore platforms, and luxury yachts.
Product Overview

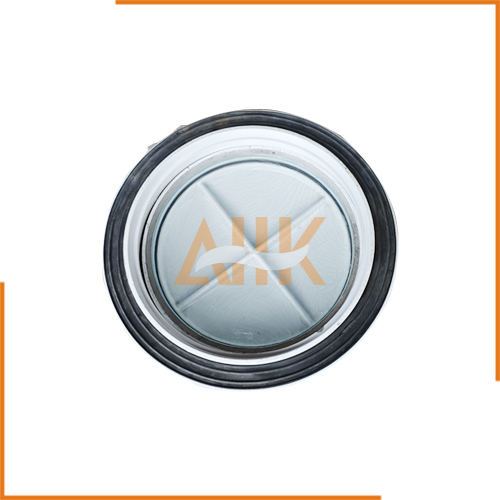

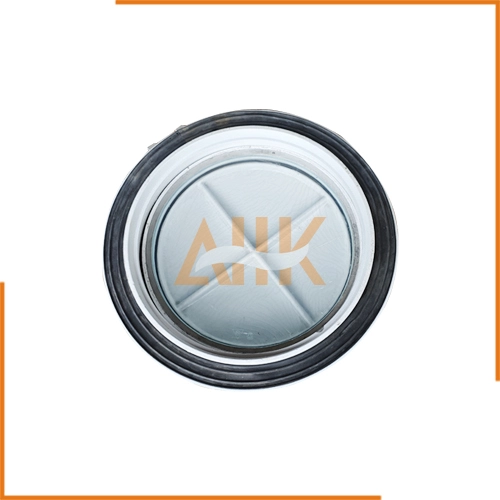

The Side Scuttle for Ships is a critical component for providing natural light and ventilation while maintaining the watertight integrity of the hull. All-K Marine manufactures side scuttles in strict accordance with international maritime regulations, including IMO (International Maritime Organization), SOLAS (Safety of Life at Sea), and major Class Society standards (ABS, DNV, LR, BV).
Each unit features a heavy-duty frame, high-strength tempered glass, and a reliable storm cover (deadlight) to protect against heavy seas and impact. Whether for new builds or retrofitting, our side scuttles deliver unmatched durability and corrosion resistance.
Key Features & Advantages
- International Certification: Manufactured and tested to meet IMO, SOLAS, ISO 1751, and ISO 12216 standards. Certification documents available upon request.
- Premium Materials: Choose from corrosion-resistant Cast Bronze (CC493K), Stainless Steel 316/316L, or heavy-duty Cast Iron with specialized marine coatings.
- Watertight Integrity: Equipped with high-grade rubber gaskets and precision-machined sealing surfaces to prevent water ingress even in rough seas.
- Safety Storm Covers: Includes hinged or detachable storm covers (deadlights) made of steel or bronze to protect the glass during severe weather.
- Tempered Safety Glass: Uses thickened, heat-treated glass that offers superior impact resistance and thermal stability.
- Versatile Mounting: Designed for easy installation on various hull thicknesses and curvatures, suitable for both welded and bolted connections.
Material Options
Cast Bronze (CC493K)
The traditional choice for luxury yachts and naval vessels. Offers exceptional corrosion resistance in saltwater and a classic aesthetic appeal. Requires minimal maintenance.
Stainless Steel 316/316L
Ideal for modern commercial ships and offshore platforms. Provides high tensile strength and excellent resistance to chlorides and industrial chemicals.
Cast Iron (Coated)
A cost-effective solution for cargo ships and bulk carriers. Finished with multi-layer epoxy or hot-dip galvanized coatings for enhanced durability.
Technical Specifications
| Product Type | Watertight Side Scuttle / Porthole with Storm Cover |
|---|---|
| Materials Available | Cast Bronze, Stainless Steel 316, Cast Iron |
| Glass Type | Tempered Safety Glass (Clear or Frosted options) |
| Standard Sizes (Dia) | 200mm, 250mm, 300mm, 350mm, 400mm (Custom sizes available) |
| Design Pressure | Compliant with ISO 12216 Category A/B/C (Water tightness up to specific head pressures) |
| Operating Temperature | -30°C to +70°C |
| Standards Compliance | IMO, SOLAS, ISO 1751, ISO 12216, GB/T 573 |
| Finish | Polished, Brushed, or Painted (Epoxy/Zinc) |
| Packaging | Seaworthy wooden crates with foam protection |
Applications
Our side scuttles are extensively used across the maritime industry:
- Commercial Vessels: Cargo ships, tankers, bulk carriers, and container ships.
- Passenger Ships: Cruise liners, ferries, and Ro-Ro vessels.
- Naval & Defense: Warships, submarines (surface components), and patrol boats.
- Offshore Industry: Oil rigs, drilling platforms, FPSOs, and support vessels.
- Recreational Marine: Super-yachts, sailing boats, and motor cruisers.
Frequently Asked Questions (FAQ)
Yes, all All-K Marine side scuttles are manufactured in strict compliance with SOLAS (Safety of Life at Sea) Chapter II-1 and relevant IMO resolutions. We can provide material certificates and type approval documents from major classification societies (ABS, DNV, LR, etc.) upon request.
In maritime terminology, a side scuttle (or porthole) is a circular, watertight window typically equipped with a hinged storm cover (deadlight) and designed to withstand higher external water pressure. Standard rectangular marine windows may not have storm covers or the same pressure ratings required for lower deck hull penetrations.
Absolutely. We offer customization services for diameter, frame length (to suit hull thickness), and glass type. Our engineering team can design side scuttles to fit specific project requirements while maintaining regulatory compliance.
Yes, we supply full spare parts kits including EPDM rubber gaskets, storm covers (deadlights), hinges, and locking handles for all our side scuttle models to ensure long-term maintainability.
Request a Quote for Your Vessel
Upgrade your ship’s safety and aesthetics with All-K Marine’s certified side scuttles. We offer competitive pricing for bulk orders and global delivery.
Contact our marine hardware specialists: Get a Quote or email [Insert Your Email Here].
