IMPA:
590288/590289/590290/590384
Scaling Hammers
SF Single and Triple Head
Highly effective for quick removal of heavy scale and coatings. The single head tools are perfect for smaller and awkward to reach areas, being lightweight and easy to handle it’s perfect for reaching behind structures and up against bulkheads. The three head tools give faster production for more open areas. Options include spark resistant Beryllium Copper heads and single piece steel pistons.

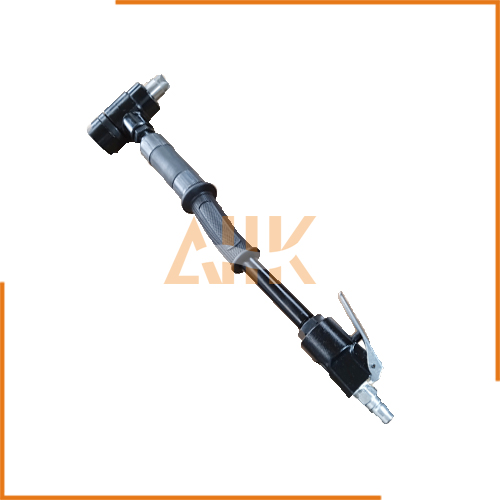

Image: SF-1 Tool
SF-1
Image: Hammer Head
Hammer Head
Single Head
Unit Per Set
| CODE | 59 02 88 | 59 02 89 | 59 02 90 | 59 03 84 |
|---|---|---|---|---|
| Model | SF1 | VLSF1 | ||
| Part No. | 151.5100 | 151.5110 | 151.5180 | 196.5095 |
| Head | Cruciform taper fit Tungsten Carbide head | Taper fit Beryllium Copper head | Cruciform single piece Steel | Cruciform taper fit Tungsten Carbide head |
| B.P.M. | 3,000 | |||
| Air Consumption (Lps/cfm) |
3.3/7 | 4.25/9 | ||
| Noise Level (db(A)) |
88.1 | 90.9 | ||
| Vibration Level (Aeqm/s2) |
6.8 | 4.4 | ||
| Length mm | 485 | 500 | ||
| Working Height mm | 152.5 | |||
| Weight kgs | 2.5 | |||
| CODE | Model | Part No. | Head | B.P.M. | Air Consumption (Lps/cfm) | Noise Level (db(A)) | Vibration Level (Aeqm/s2) | Length mm | Working Height mm | Weight kgs |
| 59 02 88 | SF1 | 151.51 | Cruciform taper fit Tungsten Carbide head | 3,000 | 3.3/7 | 88.1 | 6.8 | 485 | 152.5 | 2.5 |
| 59 02 89 | 151.511 | Taper fit Beryllium Copper head | ||||||||
| 59 02 90 | 151.518 | Cruciform single piece Steel | ||||||||
| 59 03 84 | VLSF1 | 196.5095 | Crucium taper fit Tungsten Carbide head | 4.25/9 | 90.9 | 4.4 | 500 |
