752411/752412/752413/752414/752415/752416/752417/752418

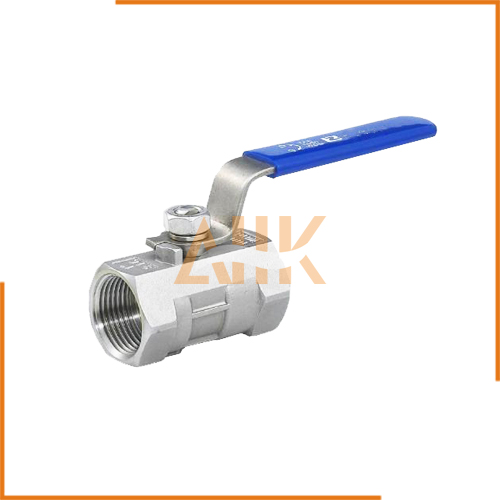

Stainless Steel Screwed End Ball Valves
| Service Fluid | Oil, gas and corrosive chemical liquid |
| Max. working pressure | 3.29 MPa {40 kgf/cm2} |
| CODE | Size | Dimensions mm | ||||
|---|---|---|---|---|---|---|
| d | L | L1 | L2 | H | ||
| 752411 | PT 1/4 | 5 | 40 | 19 | 60 | 31 |
| 752412 | 3/8 | 7.5 | 44.5 | 21.7 | 80 | 40 |
| 752413 | 1/2 | 9 | 54.5 | 26.5 | 80 | 42 |
| 752414 | 3/4 | 12.5 | 61 | 30 | 100 | 51 |
| 752415 | 1 | 16 | 68.5 | 34.5 | 100 | 54 |
| 752416 | PT 1-1/4 | 21 | 78 | 39 | 150 | 66 |
| 752417 | 1-1/2 | 24 | 82 | 41 | 150 | 69 |
| 752418 | 2 | 32 | 100 | 50 | 150 | 75 |
| CODE | Size |
| 752411 | PT 1/4 |
| 752412 | PT 3/8 |
| 752413 | PT 1/2 |
| 752414 | PT 3/4 |
| 752415 | PT 1 |
| 752416 | PT 1-1/4 |
| 752417 | PT 1-1/2 |
| 752418 | PT 2 |
