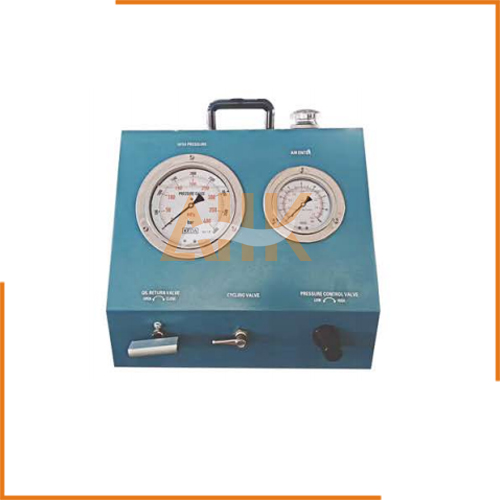

Ultra-high Pressure Pneumatic-hydraulic Pump
IMPA:
| 599999.143 |
| MODEL NO | FX-350 |
| AREA RATIO | 500:01:00 |
| ACTUAL AREA RATIO | 460:01:00 |
| AIR CONSUMPTION | 1100 LITERS/MIN AT 7 BAR AIR INPUT |
| PUMPING SPEED | APPROX 320 CYCLES/MIN AT 7 BAR AIR INPUT |
| DISPLACEMENT PER CYCLE | 2.5 cm3 |
| MAX FLOW AT NO PRESSURE | APPROX 0.35 LITERS/MIN AT 7 BAR AIR INPUT |
| TANK CAPACITY | 8.0 LITER |
| AIR INNER PORT | G 1/2″ BSP FEMALE WITH INCREASE TO M42 ADAPTER |
| LIQUID OUTLET PORT | G 1/4″ MALE HC 2.5K |
| APPROX DIMENSION | 480 x 430 x 480 |
| WEIGHT | 32 Kg |
