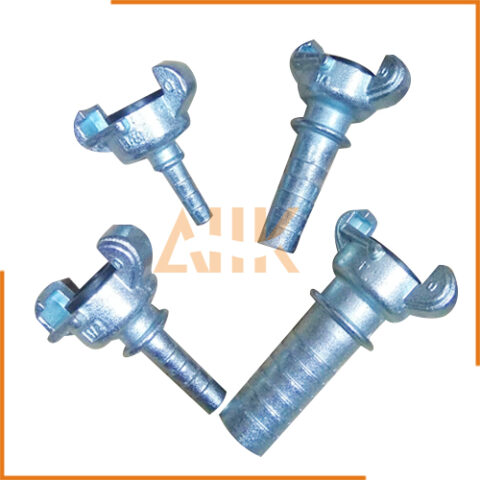

Universal Air Hose Couplings
with Hose End or Thread End
Brass made couplings forming a positively locked connection that will not break or come apart in service. The locking jaws are heavy with large bulk surfaces which cannot bend or break loose. Couplings are interchangeable between various sizes and combinations according to DIN 3489. 42 mm distance between lugs.
Both hose end
Packing
One end Male Thread
One end Female Thread
Unit Per Pc.
| CODE |
Size |
Type |
|
Nom. mm |
Inch |
|
| 351021 |
9 |
3/8 |
Hose End |
| 351022 |
12 |
1/2 |
| 351023 |
19 |
3/4 |
| 351024 |
25 |
1 |
| 351026 |
– |
PT 3/8 |
Male Thread End |
| 351027 |
– |
PT 1/2 |
| 351028 |
– |
PT 3/4 |
| 351029 |
– |
PT 1 |
| 351031 |
– |
PT 3/8 |
Female Thread End |
| 351032 |
– |
PT 1/2 |
| 351033 |
– |
PT 3/4 |
| 351034 |
– |
PT 1 |
| 351036 |
Packing for universal coupling |
