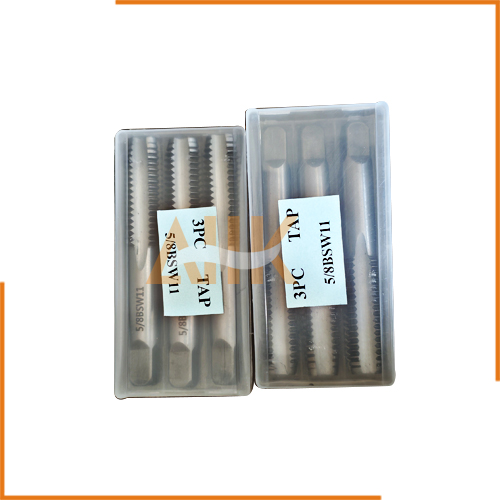

Whitworth Coarse Thread Hand Taps 3's/Set

Whitworth Coarse Thread Hand Taps 3’s/Set

Category:

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
INQUIRY

IMPA:

631301/631302/631303/631304/631305/631306/631307/631308/

631309/631310/631311/631312/631313/631314/631315/631316/

631317/631318/631319/631320/631326/631327/631328/631329/

631330/631331/631332/631333/631334/631335/631336/631337/

631338/631339/631340/631341/631342/631343/631344/631345



Unified Coarse Thread Hand Taps
3’s/Set

Carbon Steel or High Speed Steel
How to order : CODEHand tap, unified coarse, MATERIAL, NOMINAL SIZE, PITCH mm

Carbon Steel Nominal Size Diam.
mm D		 Threads
Per
Inch		 Length mm High Speed
Steel
CODE Flute Overall
L
61 13 50 No.1 – 64UNC 1.854 64 13 36 63 13 75
61 13 51 No.2 – 56UNC 2.184 56 15 42 63 13 76
61 13 52 No.3 – 48UNC 2.515 48 16 44 63 13 77
61 13 53 No.4 – 40UNC 2.845 40 16 44 63 13 78
61 13 54 No.5 – 40UNC 3.175 40 18 46 63 13 79
61 13 55 No.6 – 32UNC 3.505 32 18 48 63 13 80
61 13 56 No.8 – 32UNC 4.166 32 20 52 63 13 81
61 13 57 No.10 – 24UNC 4.826 24 22 60 63 13 82
61 13 58 No.12 – 24UNC 5.486 24 22 60 63 13 83
61 13 59 1/4 – 20UNC 6.350 20 24 62 63 13 84
63 13 60 5/16 – 18UNC 7.938 18 30 70 63 13 85
63 13 61 3/8 – 16UNC 9.525 16 35 75  63 13 86
63 13 62 7/16 – 14UNC 11.112 14 38 80  63 13 87
63 13 63 1/2 – 13UNC 12.700 13 42 85  63 13 88
63 13 64 9/16 – 12UNC 14.288 12 42 90  63 13 89
63 13 65 5/8 – 11UNC 15.875 11 45 95 63 13 90
63 13 66 3/4 – 10UNC 19.050 10 50 105 63 13 91
63 13 67 7/8 – 9UNC 22.225 9 55 115 63 13 92
63 13 68 1 – 8UNC 25.400 8 60 125 63 13 93
63 13 69 1-1/8 – 7UNC 28.575 7 65 135 63 13 94
63 13 70 1 1/4 – 7UNC 31.750 7 70 145 63 13 95
63 13 71 1 3/8 – 6UNC 34.925 6 75 155 63 13 96
63 13 72 1 1/2 – 6UNC 38.100 6 78 160 63 13 97
63 13 73 1 3/4 – 5UNC 44.450 5 85 175 63 13 98
63 13 74 2 – 4 1/2UNC 50.800 4 1/2 92 195 63 13 99



Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
Carbon Steel Designation Diam. inch D Threads Per Inch Length mm High Speed Steel
CODE Flute Overall
L		 CODE
63 13 01  1/9 60 13 36 63 13 26
63 13 02  1/9 48 15 42 63 13 27
63 13 03  1/8 40 18 46 63 13 28
63 13 04  1/6 32 20 52 63 13 29
63 13 05  1/5 24 22 60 63 13 30
63 13 06  2/9 24 22 60 63 13 31
63 13 07  1/4 20 24 62 63 13 32
63 13 08  1/3 18 30 70 63 13 33
63 13 09  3/8 16 35 75 63 13 34
63 13 10  4/9 14 38 80 63 13 35
63 13 11  1/2 12 42 85 63 13 36
63 13 12  5/9 12 42 90 63 13 37
63 13 13  5/8 11 45 95 63 13 38
63 13 14  3/4 10 50 105 63 13 39
63 13 15  7/8 9 55 115 63 13 40
63 13 16 1 8 60 125 63 13 41
63 13 17 1 1/8 7 65 135 63 13 42
63 13 18 1 1/4 7 70 145 63 13 43
63 13 19 1 3/8 6 75 155 63 13 44
63 13 20 1 1/2 6 78 160 63 13 45
