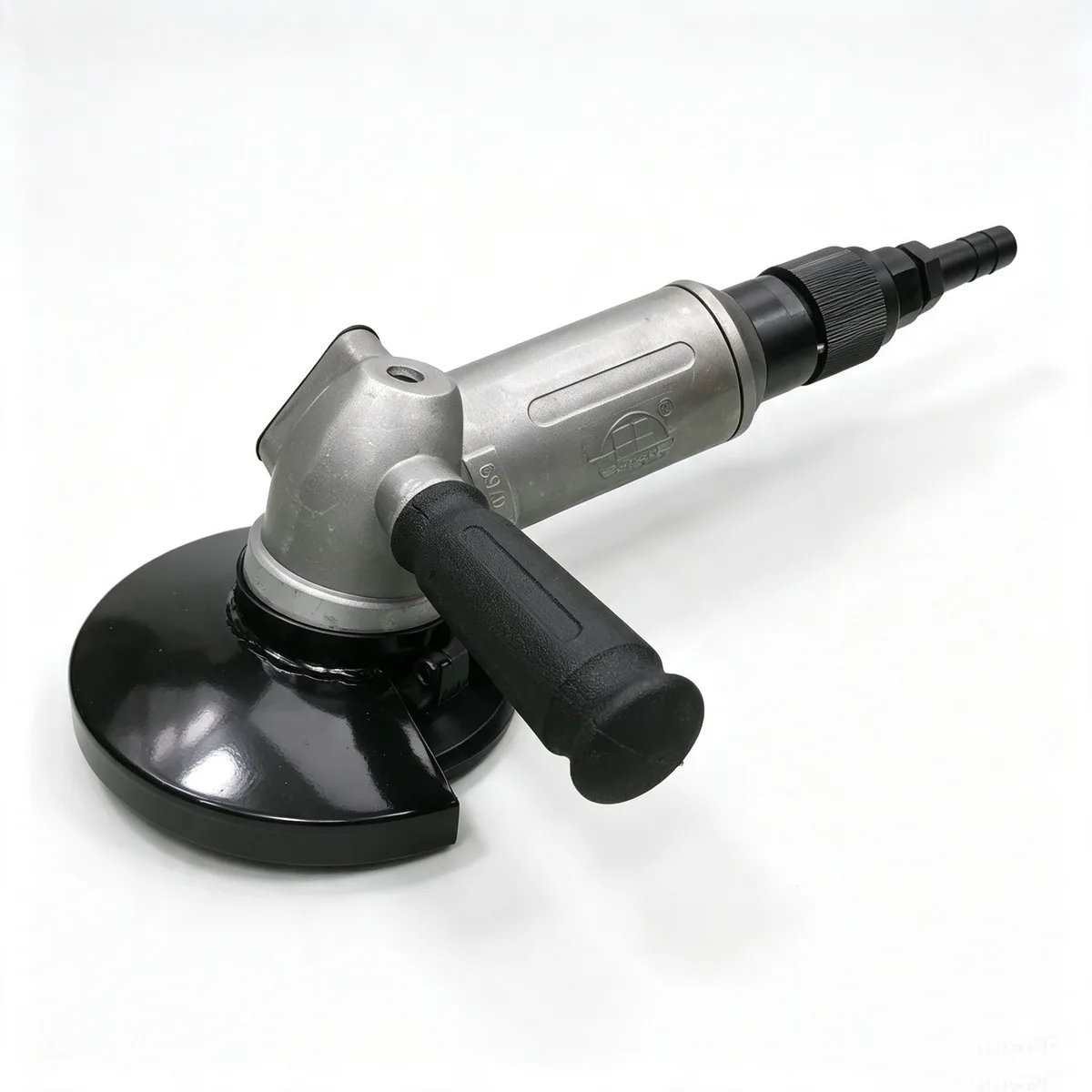

150mm Pneumatic Angle Grinder for Marine & Industrial Use

This 150mm pneumatic angle grinder is a robust and versatile tool engineered for heavy-duty industrial applications, particularly in shipbuilding and marine repair. It delivers powerful grinding, surface preparation, and polishing performance, making it an essential tool for welders, fabricators, and shipyard workers. With a maximum wheel diameter of 150mm and a free speed of up to 8800 RPM, it efficiently handles tasks such as weld seam grinding, rust removal, edge deburring, and light cutting on steel and other metals.

Designed for continuous operation, this grinder operates at a working air pressure of 0.63 MPa (approx. 6.3 kgf/cm²) and has an air consumption of 18.37 L/s. Its compact length of 230mm and weight of 2.0kg provide excellent handling and control, reducing operator fatigue during extended use. The G3/8" air inlet ensures compatibility with standard pneumatic systems, and for optimal performance, it is recommended to use a clean, dry air supply with a filter-regulator-lubricator unit. Whether you are preparing weld joints, smoothing putty, or sanding non-metal surfaces, this pneumatic angle grinder is a reliable choice for demanding environments.

Key Features

Technical Specifications

SpecificationValue
Max Wheel Diameter150 mm
Free Speed≤ 8,800 RPM
Working Air Pressure0.63 MPa (6.3 kgf/cm²)
Air Consumption18.37 L/s
Overall Length230 mm
Weight2.0 kg
Air Inlet ThreadG3/8"

Frequently Asked Questions

What is the recommended air pressure for this grinder?

The recommended working air pressure is between 5-6 kgf/cm² (approx. 0.49-0.59 MPa). Ensure your air supply is regulated within this range for optimal performance.

Can this grinder be used for cutting metal?

Yes, with the appropriate 150mm cutting disc, it can be used for light cutting of steel and other metals. Always use a guard and follow safety precautions.

What maintenance is required?

Regularly check and clean the air inlet and exhaust. Use a filter-regulator-lubricator to keep the tool lubricated and free from moisture. Avoid prolonged free running to prevent premature wear.

Is this grinder suitable for marine environments?

Yes, it is designed for heavy-duty industrial use, including shipbuilding and marine repair. However, after use, wipe it clean and store in a dry place to prevent corrosion.
