Key Features
- 300 kg (660 lbs) lifting capacity for marine tank and bilge operations
- Lifting speed of 12 m/min for efficient cargo handling
- 40 m of 6 mm wire rope included for deep-tank access
- Powered by 2.2 kW, 110V single-phase motor (60 Hz)

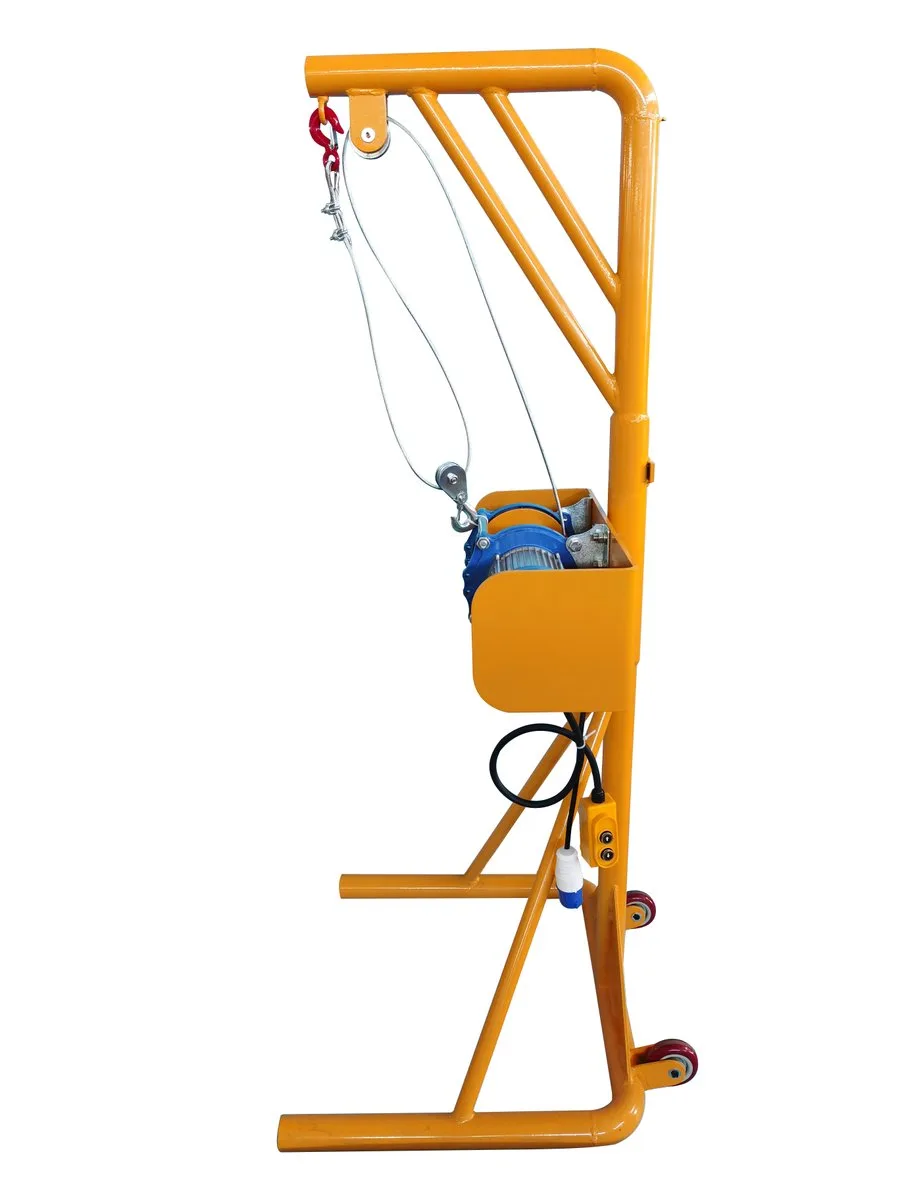

- Wheeled frame for easy mobility and storage
- Compact design ideal for confined ship spaces
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 300 kg (660 lbs) |
| Lifting Speed | 12 m/min (39 ft/min) |
| Wire Rope Diameter | 6 mm (0.24 in) |
| Wire Rope Length | 40 m (131 ft) |
| Voltage | 110 V |
| Phase | Single Phase |
| Power | 2.2 kW (3 hp) |
| Frequency | 60 Hz |
Frequently Asked Questions
What is the maximum lifting height?
The wire rope length is 40 meters, so the maximum lifting height is approximately 40 meters minus the distance from the winch to the load hook. Actual height depends on mounting configuration.
Can this winch be used for continuous operation?
This winch is designed for intermittent duty typical of cargo handling in ship tanks. For continuous heavy use, consult your marine engineer for duty cycle recommendations.
Does it come with a remote control?
No, this model does not include a remote control. It is operated via a pendant switch (included) or direct control panel.
What is the warranty period?
Contact ALL-K Marine for warranty details. Standard warranty covers manufacturing defects for one year.
