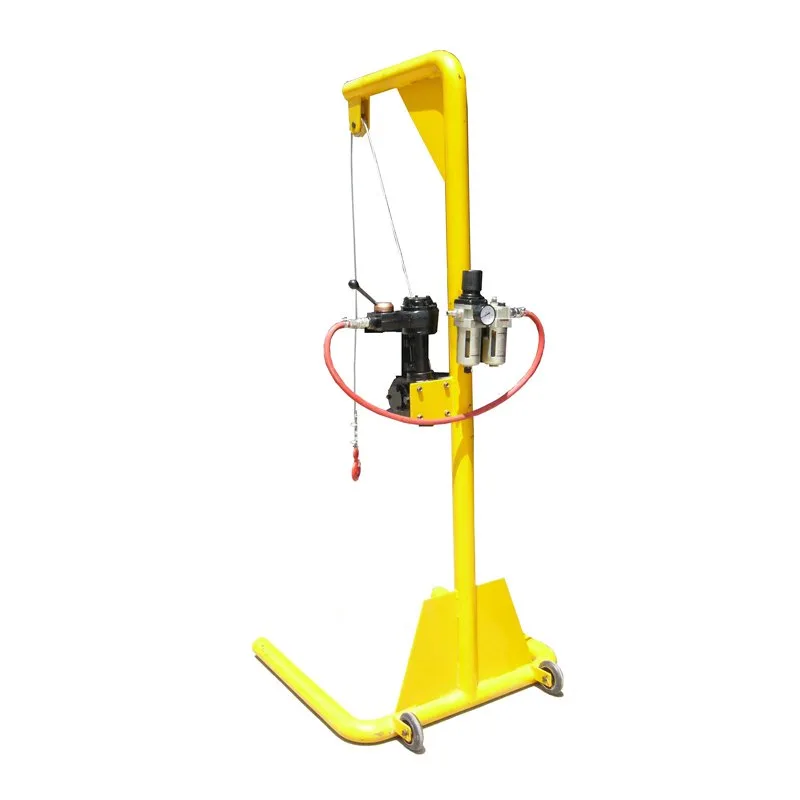

Key Features
- Air-driven pneumatic motor – no electrical sparks, safe for hazardous environments
- Safe working load: 100 kg (220 lbs)
- No-load hoisting speed: 10 m/min
- Gear ratio: 30:1 for smooth operation
- Includes 4 mm × 3700 mm wire rope
- 1/2" air inlet with stainless steel PM400 coupling
- Compact dimensions: 700 × 800 × 1830 mm
- Net weight: 40.5 kg
- CE certified
Technical Specifications
| Specification | Value |
|---|---|
| Type | Pneumatic Mucking Winch |
| IMPA Code | 590603 |
| Working Air Pressure | 7–8 kgf/cm² |
| Safe Working Load (SWL) | 100 kg |
| No-Load Hoisting Speed | 10 m/min |
| Gear Ratio | 30:1 |
| Wire Rope | 4 mm × 3700 mm |
| Air Inlet Hose | 1/2" |
| Air Coupling | Stainless steel PM400 |
| Dimensions (L×W×H) | 700 × 800 × 1830 mm |
| Net Weight | 40.5 kg |
| Certification | CE |
Frequently Asked Questions
What is a pneumatic mucking winch used for?
It is used for removing sludge, debris, and waste from ship tanks during cleaning operations, especially in explosive atmospheres where electric winches are not allowed.
What air pressure is required?
The winch requires a working air pressure of 7–8 kgf/cm² (about 100–115 psi).
Is this winch CE certified?
Yes, the winch comes with a CE certificate, ensuring it meets European safety standards.
What is the maximum lifting capacity?
The safe working load is 100 kg (220 lbs).
