IMPA:632338

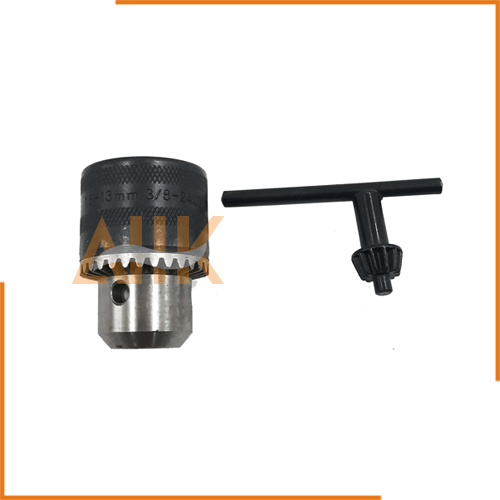

Drill Chucks with Key
These drill chucks are offered for light-duty and heavy-duty portable, bench, or floor type
power tools in a wide range of capacities for either threaded or tapered mounting spindles.
| CODE | Capacity mm |
Dimensions | Jacobs Taper Hole No. |
|
|---|---|---|---|---|
| Length mm | Diam mm | |||
| 63 23 31 | 4.0 | 40 | 26 | J#D |
| 63 23 32 | 5.0 | 40 | 26 | “ |
| 63 23 33 | 5.0 | 50 | 33 | J#1 |
| 63 23 34 | 6.5 | 50 | 33 | “ |
| 63 23 35 | 6.5 | 58 | 38 | “ |
| 63 23 36 | 8.0 | 58 | 38 | J#1 |
| 63 23 37 | 10.0 | 70 | 46 | J#2 Short |
| 63 23 38 | 13.0 | 90 | 55 | J#6 |
| 63 23 39 | 14.0 | 98 | 60 | J#3 |
| 63 23 40 | 16.0 | 98 | 60 | J#3 |
| 63 23 41 | 19.0 | 125 | 75 | J#4 |
| 63 23 42 | 22.0 | 125 | 75 | “ |
| 63 23 43 | 25.0 | 142 | 80 | J#5 |
