IMPA:
| 631451/631452/631453/631454/631455/631456/631457/631458/631459/631460/631461/631462/631463/631464/
631465/631466/631467/631468/631469/631470/631471/631472/631473/631474/631475/631476/631477/631478/ 631479/631480/631481/631482/631483/631484/631485/631486/631487/631488/ |

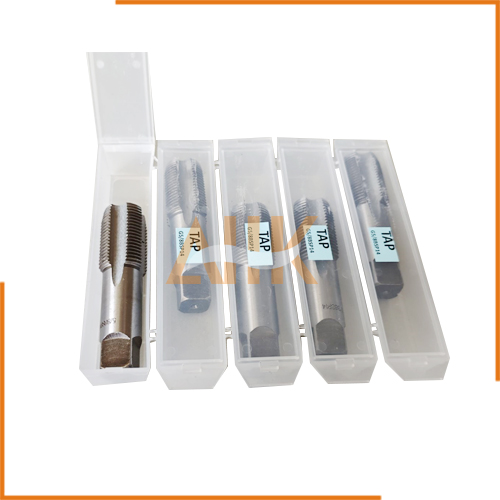

High Speed Steel
Unit Per Pc.
| CODE | Nominal Size |
Thread Per 25.4 mm |
Overall Length mm |
CODE | Nominal Size |
Thread Per 25.4 mm |
Overall Length mm |
|---|---|---|---|---|---|---|---|
| G (ISO) TYPE | PF TYPE | ||||||
| 63 14 51 | G 1/16 | 28 | 52 | ||||
| 63 14 52 | ” 1/8 | 28 | 59 | 63 14 76 | PF 1/8 | 28 | 55 |
| 63 14 53 | ” 1/4 | 19 | 67 | 63 14 77 | ” 1/4 | 19 | 62 |
| 63 14 54 | ” 3/8 | 19 | 75 | 63 14 78 | ” 3/8 | 19 | 65 |
| 63 14 55 | ” 1/2 | 14 | 87 | 63 14 79 | ” 1/2 | 14 | 80 |
| 63 14 56 | G 5/8 | 14 | 91 | 63 14 80 | PF 5/8 | 14 | 82 |
| 63 14 57 | ” 3/4 | 14 | 96 | 63 14 81 | ” 3/4 | 14 | 85 |
| 63 14 58 | ” 7/8 | 14 | 102 | 63 14 82 | ” 7/8 | 14 | 90 |
| 63 14 59 | ” 1 | 11 | 109 | 63 14 83 | ” 1 | 11 | 95 |
| 63 14 60 | ” 1-1/8 | 11 | 115 | 63 14 84 | ” 1-1/8 | 11 | 100 |
| 63 14 61 | G 1-1/4 | 11 | 119 | 63 14 85 | PF 1-1/4 | 11 | 105 |
| 63 14 62 | ” 1-1/2 | 11 | 125 | 63 14 86 | ” 1-1/2 | 11 | 110 |
| 63 14 63 | ” 1-3/4 | 11 | 132 | 63 14 87 | ” 1-3/4 | 11 | 115 |
| 63 14 64 | ” 2 | 11 | 140 | 63 14 88 | ” 2 | 11 | 120 |
| 63 14 65 | ” 2-1/4 | 11 | 142 | ||||
| 63 14 66 | G 2-1/2 | 11 | 153 | ||||
| 63 14 67 | ” 2-3/4 | 11 | 160 | ||||
| 63 14 68 | ” 3 | 11 | 164 | ||||
| 63 14 69 | ” 3-1/2 | 11 | 173 | ||||
| 63 14 70 | ” 4 | 11 | 185 | ||||
| CODE | Size (G/ISO) | Threads per 25.4 mm | Overall Length (mm) | CODE | Size (PF) | Threads per 25.4 mm | Overall Length (mm) |
| 631451 | G1/16 | 28 | 52 | ||||
| 631452 | G1/8 | 28 | 59 | 631476 | PF1/8 | 28 | 55 |
| 631453 | G1/4 | 19 | 67 | 631477 | PF1/4 | 19 | 62 |
| 631454 | G3/8 | 19 | 75 | 631478 | PF3/8 | 19 | 65 |
| 631455 | G1/2 | 14 | 87 | 631479 | PF1/2 | 14 | 80 |
| 631456 | G5/8 | 14 | 91 | 631480 | PF5/8 | 14 | 82 |
| 631457 | G3/4 | 14 | 96 | 631481 | PF3/4 | 14 | 85 |
| 631458 | G7/8 | 14 | 102 | 631482 | PF7/8 | 14 | 90 |
| 631459 | G1 | 11 | 109 | 631483 | PF1 | 11 | 95 |
| 631460 | G1-1/8 | 11 | 115 | 631484 | PF1-1/8 | 11 | 100 |
| 631461 | G1-1/4 | 11 | 119 | 631485 | PF1-1/4 | 11 | 105 |
| 631462 | G1-1/2 | 11 | 125 | 631486 | PF1-1/2 | 11 | 110 |
| 631463 | G1-3/4 | 11 | 132 | 631487 | PF1-3/4 | 11 | 115 |
| 631464 | G2 | 11 | 140 | 631488 | PF2 | 11 | 120 |
| 631465 | G2-1/4 | 11 | 142 | ||||
| 631466 | G2-1/2 | 11 | 153 | ||||
| 631467 | G2-3/4 | 11 | 160 | ||||
| 631468 | G3 | 11 | 164 | ||||
| 631469 | G3-1/2 | 11 | 173 | ||||
| 631470 | G4 | 11 | 185 |
