Marine Bronze 16 kgf/cm2 Screw Down Check Globe Valves F-7409/Angle Valves F-7410

Marine Bronze 16 kgf/cm2 Screw Down Check Globe Valves F-7409/Angle Valves F-7410

Category:

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
INQUIRY

IMPA Code:751071/751072/751073/751074/751075

Share on FacebookTweet about this on TwitterShare on TumblrEmail this to someonePrint this page
CODE Size
mm		 Dimensions mm Weight
Kgs
Face
to
Face		 Flange
Diam.		 Flange Bolt Hole
Pitch Number Hole

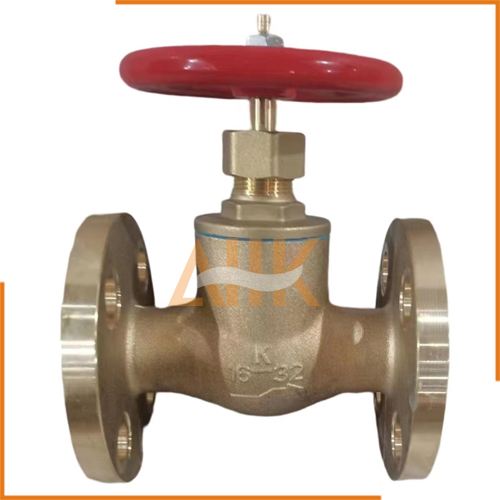

Globe Valve F-7409
751071 15 110 95 70 4 15 2.7
751072 20 120 100 75 4 15 3.63
751073 25 130 125 90 4 19 5.09
751074 32 160 135 100 4 19 6.77
751075 40 180 140 105 4 19 8.25
Angle Valve F-7410
751081 15 70 95 70 4 15 2.67
751082 20 75 100 75 4 15 3.56
751083 25 85 125 90 4 19 5.02
751084 32 95 135 100 4 19 6.58
751085 40 100 140 105 4 19 7.95
