IMPA Code: 751051/751052/751053/751054/751055/751056/751057
| CODE | Size mm |
Dimensions mm | Weight Kgs |
||||
| Face to Face |
Flange Diam. |
Flange Bolt Hole | |||||
| Pitch | Number | Hole | |||||

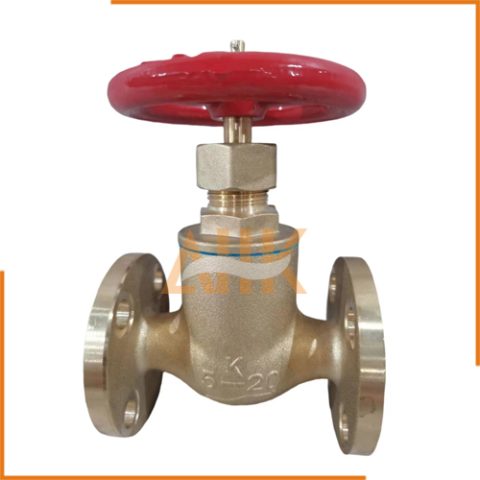

| Globe Valve F-7351 | |||||||
| 751051 | 15 | 100 | 80 | 60 | 4 | 12 | 1.96 |
| 751052 | 20 | 110 | 85 | 65 | 4 | 12 | 2.77 |
| 751053 | 25 | 120 | 95 | 75 | 4 | 12 | 3.41 |
| 751054 | 32 | 140 | 115 | 90 | 4 | 15 | 4.86 |
| 751055 | 40 | 160 | 120 | 95 | 4 | 15 | 6.3 |
| Globe Valve F-7352 | |||||||
| 751061 | 15 | 55 | 80 | 60 | 4 | 12 | 1.92 |
| 751062 | 20 | 60 | 85 | 65 | 4 | 12 | 3 |
| 751063 | 25 | 65 | 95 | 75 | 4 | 12 | 3.3 |
| 751064 | 32 | 80 | 115 | 90 | 4 | 15 | 4.63 |
| 751065 | 40 | 85 | 120 | 95 | 4 | 15 | 5.81 |
