Metric Fine Thread Dies

Category: 63 Cutting Tools

INQUIRY

IMPA:

631801/631802/631803/631804/631805/631806/631807/631808/

631809/631810/631811/631812/631813/631814/631815/631816/

631817/631818/631819/631820/631821/631822/631823/631824/

631825/631826/631827/631828/631829/631830/631831/631832/

631833/631834/631835/631836/631837/631838/631839/631840/

631841/631842/631843/631844/631845/631846/631847/631848/

6318 49/63 18 50/63 18 51/63 18 52/63 18 53/63 18 54/63 18 55/63 18 56/

6 31857/631858/631859/631860

Carbon Steel

(Ref. JIS B 4451 – 88)

How to order : CODE

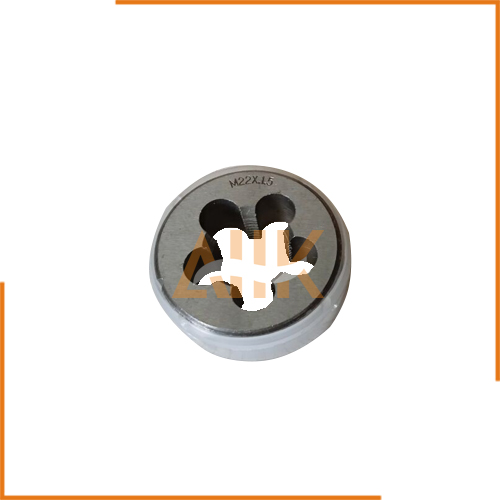

Round die, adjustable, metric fine thread, carbon steel,
NOMINAL SIZE, PITCH, DIAM mm

Unit Per Pc.

CODE	Nominal Size	O.D. mm D	Thk. mm B
63 18 01	M 1.0 x 0.2	16	5
63 18 02	M 1.1 x 0.2
63 18 03	M 1.2 x 0.2
63 18 04	M 1.4 x 0.2
63 18 05	M 1.6 x 0.2
63 18 06	M 1.8 x 0.2	20	7
63 18 07	M 2 x 0.25
63 18 08	M 2.2 x 0.25
63 18 09	M 2.5 x 0.35
63 18 10	M 3 x 0.35
63 18 11	M 3.5 x 0.35	25	9
63 18 12	M 4 x 0.5
63 18 13	M 4.5 x 0.5
63 18 14	M 5 x 0.5
63 18 15	M 5.5 x 0.5
63 18 16	M 6 x 0.75	38	13
63 18 17	M 7 x 0.75
63 18 18	M 8 x 1
63 18 19	M 8 x 0.75
63 18 20	M 9 x 1
63 18 21	M 9 x 0.75	50	16
63 18 22	M 10 x 1.25
63 18 23	M 10 x 1
63 18 24	M 10 x 0.75
63 18 25	M 11 x 1
63 18 26	M 11 x 0.75	63	20
63 18 27	M 12 x 1.5
63 18 28	M 12 x 1.25
63 18 29	M 12 x 1
63 18 30	M 14 x 1.5
63 18 31	M 14 x 1	75	25
63 18 32	M 15 x 1.5
63 18 33	M 15 x 1
63 18 34	M 16 x 1.5
63 18 35	M 16 x 1
63 18 36	M 17 x 1.5	75	25
63 18 37	M 17 x 1
63 18 38	M 18 x 2
63 18 39	M 18 x 1.5
63 18 40	M 18 x 1
63 18 41	M 20 x 2	75	25
63 18 42	M 20 x 1.5
63 18 43	M 20 x 1
63 18 44	M 22 x 2
63 18 45	M 22 x 1.5
63 18 46	M 22 x 1	75	25
63 18 47	M 24 x 2
63 18 48	M 24 x 1.5
63 18 49	M 24 x 1
63 18 50	M 25 x 2
63 18 51	M 25 x 1.5	75	25
63 18 52	M 25 x 1
63 18 53	M 26 x 1.5
63 18 54	M 27 x 2
63 18 55	M 27 x 1.5
63 18 56	M 27 x 1	75	25
63 18 57	M 28 x 2
63 18 58	M 28 x 1.5
63 18 59	M 28 x 1
63 18 60	M 30 x 3
